DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPM-MBR-LS-01 (MBRT-LS-01) - IN-SEAM ATTACHMENT WITH PLATE I

Elevate In-seam attachment with plate into purlin (Roofing Attachment). Model TPM-MBR-LS-01. Maximum fastener length is 10 inches (254 mm); Purlin fasteners spaced maximum 12 inches (305 mm) on center; Minimum weld width is 1.5 inches (38.1 mm); Minimum seam plate width is 6 inches (152.4 mm). material: TPO / PVC KEE / MAX PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-MBR-LS-01-MBRT-LS-01---IN-SEAM-ATTACHMENT-WITH-PLATE-I.pdfData sheet

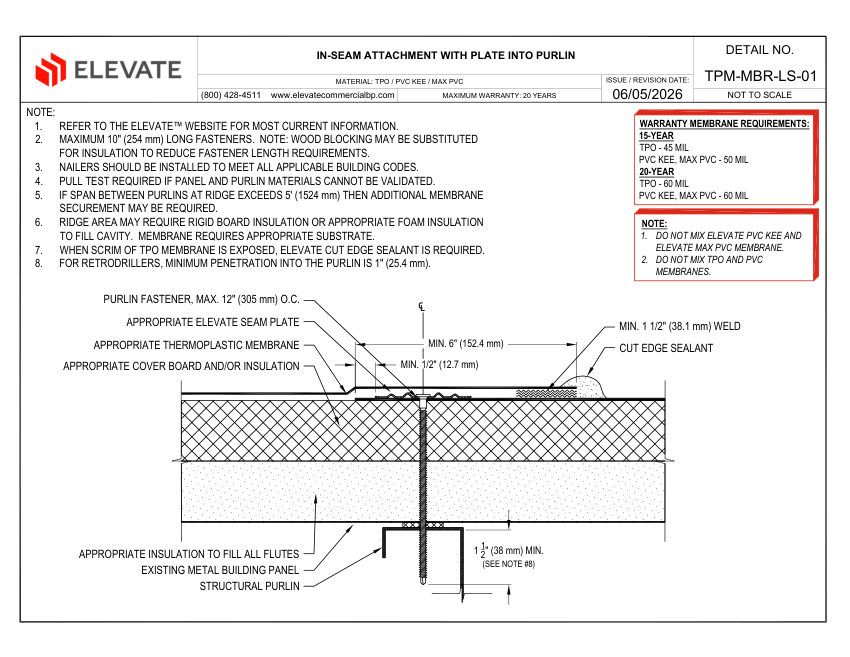

Elevate TPM-MBR-LS-01 (MBRT-LS-01) - IN-SEAM ATTACHMENT WITH PLATE I cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-MBR-LS-01 (MBRT-LS-01) - IN-SEAM ATTACHMENT WITH PLATE I
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-MBR-LS-01 (MBRT-LS-01) - IN-SEAM ATTACHMENT WITH PLATE I
DescriptionElevate In-seam attachment with plate into purlin (Roofing Attachment). Model TPM-MBR-LS-01. Maximum fastener length is 10 inches (254 mm); Purlin fasteners spaced maximum 12 inches (305 mm) on center; Minimum weld width is 1.5 inches (38.1 mm); Minimum seam plate width is 6 inches (152.4 mm). material: TPO / PVC KEE / MAX PVC
Connection sizeMax 10" (254 mm) fasteners
End connectionPurlin fastener max 12" (305 mm) O.C.
MountingIn-seam
DimensionsMin 1 1/2" (38.1 mm) weld; Min 6" (152.4 mm) seam plate; Min 1/2" (12.7 mm) cut edge sealant
Compliance20-Year Warranty (TPO 60 mil / PVC
