ElevateTPM -P-01 (UT-P-01) - PENETRATION WITH ULTRAPLY TPO LARGE PI

Elevate Large Pipe Flashing (Roofing Penetration Flashing). Model TPM-P-01 (UT-P-01). Fits 4" to 8" penetration sizes; Maximum service line temperature 160°F (71.11°C); Requires AP sealant or high grade sealant; 20-year maximum warranty. material: Ultraply TPO

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM--P-01-UT-P-01---PENETRATION-WITH-ULTRAPLY-TPO-LARGE-PI.pdfData sheet

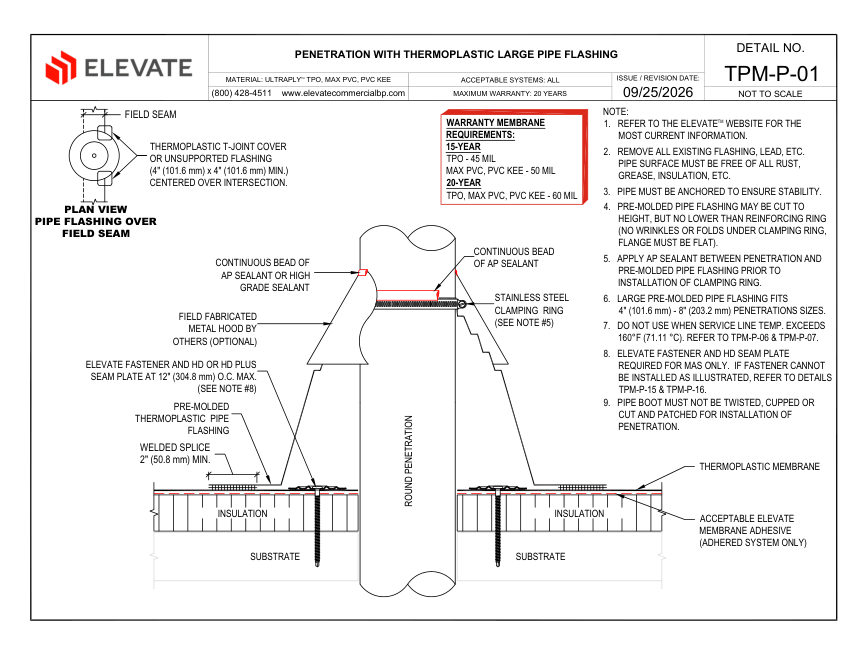

Elevate TPM -P-01 (UT-P-01) - PENETRATION WITH ULTRAPLY TPO LARGE PI cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM -P-01 (UT-P-01) - PENETRATION WITH ULTRAPLY TPO LARGE PI
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM -P-01 (UT-P-01) - PENETRATION WITH ULTRAPLY TPO LARGE PI
DescriptionElevate Large Pipe Flashing (Roofing Penetration Flashing). Model TPM-P-01 (UT-P-01). Fits 4" to 8" penetration sizes; Maximum service line temperature 160°F (71.11°C); Requires AP sealant or high grade sealant; 20-year maximum warranty. material: Ultraply TPO
Connection size4" (101.6 mm) - 8" (203.2 mm)
End connectionWelded splice, Stainless steel clamping ring
MountingElevate fastener and HD seam plate at 12" (304.8 mm) O.C. max
DimensionsT-joint cover or flashing 4" (101.6 mm) x 4" (101.6 mm) min
ComplianceAcceptable for all Ultraply TPO membrane systems.
