DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPM -P-03 (UT-P-03) - PENETRATION WITH QUICKSEAM PIPE FLASHI

Elevate Pipe Flashing (Roofing Penetration). Model TPM-P-03 (UT-P-03). Fits penetrations from 1" (25 mm) to 6" (152 mm); Maximum service line temperature 160 °F (71.11 °C); Requires AP Sealant or high-grade sealant between penetration and flashing; Compatible with all Elevate TPO membrane systems. material: ULTRAPLY TPO

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM--P-03-UT-P-03---PENETRATION-WITH-QUICKSEAM-PIPE-FLASHI.pdfData sheet

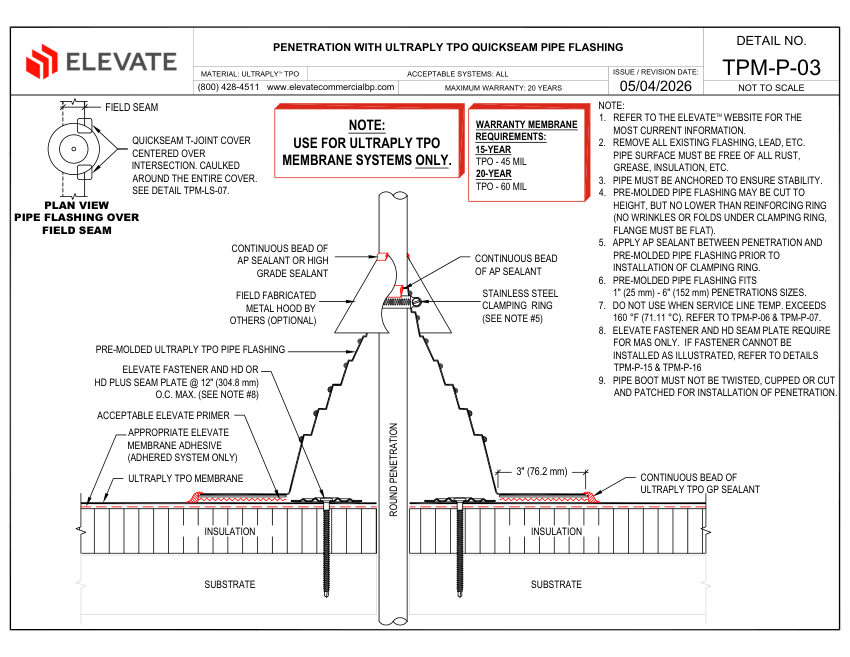

Elevate TPM -P-03 (UT-P-03) - PENETRATION WITH QUICKSEAM PIPE FLASHI cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM -P-03 (UT-P-03) - PENETRATION WITH QUICKSEAM PIPE FLASHI
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM -P-03 (UT-P-03) - PENETRATION WITH QUICKSEAM PIPE FLASHI
DescriptionElevate Pipe Flashing (Roofing Penetration). Model TPM-P-03 (UT-P-03). Fits penetrations from 1" (25 mm) to 6" (152 mm); Maximum service line temperature 160 °F (71.11 °C); Requires AP Sealant or high-grade sealant between penetration and flashing; Compatible with all Elevate TPO membrane systems. material: ULTRAPLY TPO
Connection size1" (25 mm) - 6" (152 mm)
End connectionStainless Steel Clamping Ring
MountingElevate Fastener and HD or HD Plus Seam Plate @ 12" O.C. Max
Compliance20-Year Warranty (60 mil TPO), 15-Year Warranty (45 mil TPO).
