ElevateTPM-P-21A (PVC-P-09) - ROUND PENETRATION WITH PVC SPLIT PIPE

Elevate Round Penetration with PVC Split Pipe Boot (Roofing Penetration). Model TPM-P-21A (PVC-P-09). Maximum service line temperature 150 °F (66 °C); 20-year warranty for PVC KEE/MAX PVC 60 mil; 15-year warranty for PVC KEE/MAX PVC 50 mil; Requires continuous bead of Elevate AP Sealant. material: PVC KEE / MAX PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-P-21A-PVC-P-09---ROUND-PENETRATION-WITH-PVC-SPLIT-PIPE.pdfData sheet

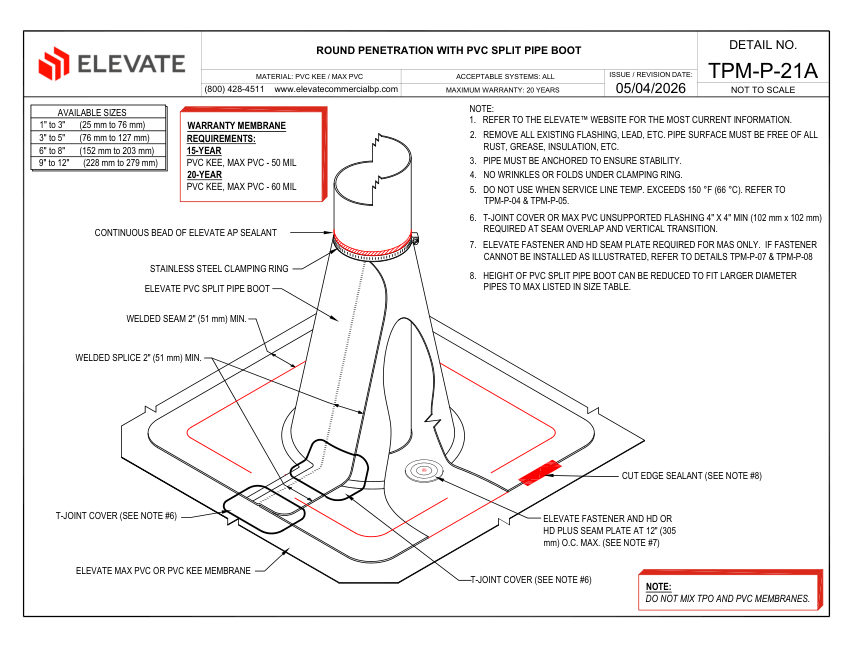

Elevate TPM-P-21A (PVC-P-09) - ROUND PENETRATION WITH PVC SPLIT PIPE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-P-21A (PVC-P-09) - ROUND PENETRATION WITH PVC SPLIT PIPE
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-P-21A (PVC-P-09) - ROUND PENETRATION WITH PVC SPLIT PIPE
DescriptionElevate Round Penetration with PVC Split Pipe Boot (Roofing Penetration). Model TPM-P-21A (PVC-P-09). Maximum service line temperature 150 °F (66 °C); 20-year warranty for PVC KEE/MAX PVC 60 mil; 15-year warranty for PVC KEE/MAX PVC 50 mil; Requires continuous bead of Elevate AP Sealant. material: PVC KEE / MAX PVC
Connection size1" to 12" (25 mm to 279 mm)
End connectionStainless Steel Clamping Ring
MountingElevate Fastener and HD Seam Plate
DimensionsWelded Seam 2" (51 mm) min; Welded Splice 2" (51 mm) min
ComplianceAcceptable Systems: All.
