DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPM-PE-01 (UT-PE-01 & PVC-PE-01) - BATTEN OR HD PLATE WITH 8

Elevate Batten or HD Plate with Thermoplastic Cover Strip (Roofing Perimeter Enhancement). Model TPM-PE-01. Acceptable systems: All

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-PE-01-UT-PE-01-PVC-PE-01---BATTEN-OR-HD-PLATE-WITH-8.pdfData sheet

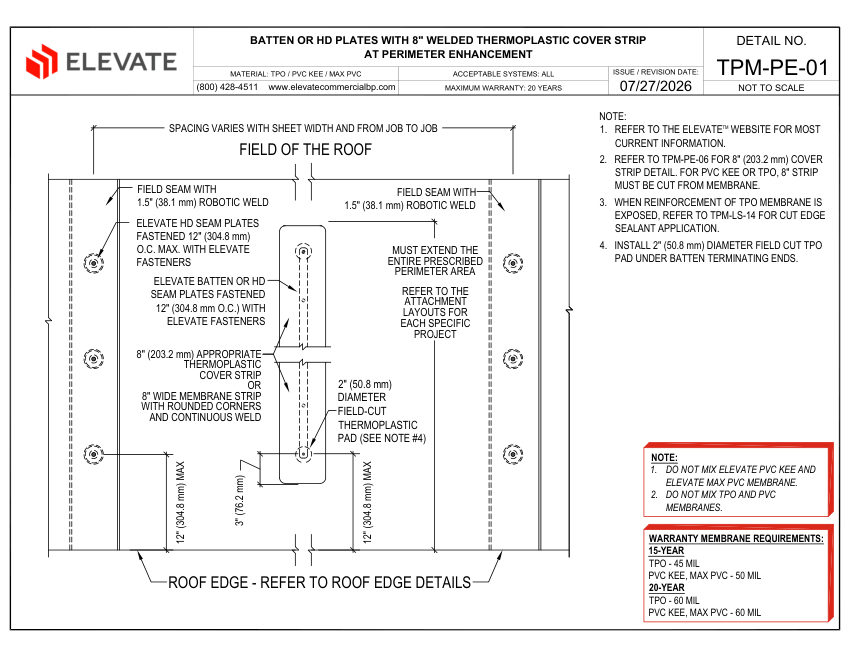

Elevate TPM-PE-01 (UT-PE-01 & PVC-PE-01) - BATTEN OR HD PLATE WITH 8 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-PE-01 (UT-PE-01 & PVC-PE-01) - BATTEN OR HD PLATE WITH 8
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-PE-01 (UT-PE-01 & PVC-PE-01) - BATTEN OR HD PLATE WITH 8
DescriptionElevate Batten or HD Plate with Thermoplastic Cover Strip (Roofing Perimeter Enhancement). Model TPM-PE-01. Acceptable systems: All
Fastener spacing12" (304.8 mm) O.C. max
Cover strip8" (203.2 mm) thermoplastic with rounded corners and continuous weld
Warranty requirements15-year (TPO 45 mil, PVC 50 mil) or 20-year (TPO 60 mil, PVC 60 mil). material: TPO / PVC KEE / MAX PVC
Connection size8" (203.2 mm) cover strip
End connectionWelded
MountingFastened 12" (304.8 mm) O.C. max with Elevate fasteners
Dimensions8" (203.2 mm) wide strip; 2" (50.8 mm) diameter field-cut pad; compl
