ElevateTPM-PE-02 (UT-PE-02) - BATTEN OR HD PLATE WITH 9.5" ULTRAPLY

Elevate TPO Quickseam Flashing (Roofing Flashing). Model TPM-PE-02 (UT-PE-02). 9.5" (241.3 mm) Ultraply TPO Quickseam Flashing; Compatible with all Elevate TPO membrane systems; Requires 2" (50.8 mm) diameter field-cut TPO pad under batten ends; Fastening spacing 12" (304.8 mm) O.C. maximum. material: Ultraply TPO

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-PE-02-UT-PE-02---BATTEN-OR-HD-PLATE-WITH-9.5-ULTRAPLY.pdfData sheet

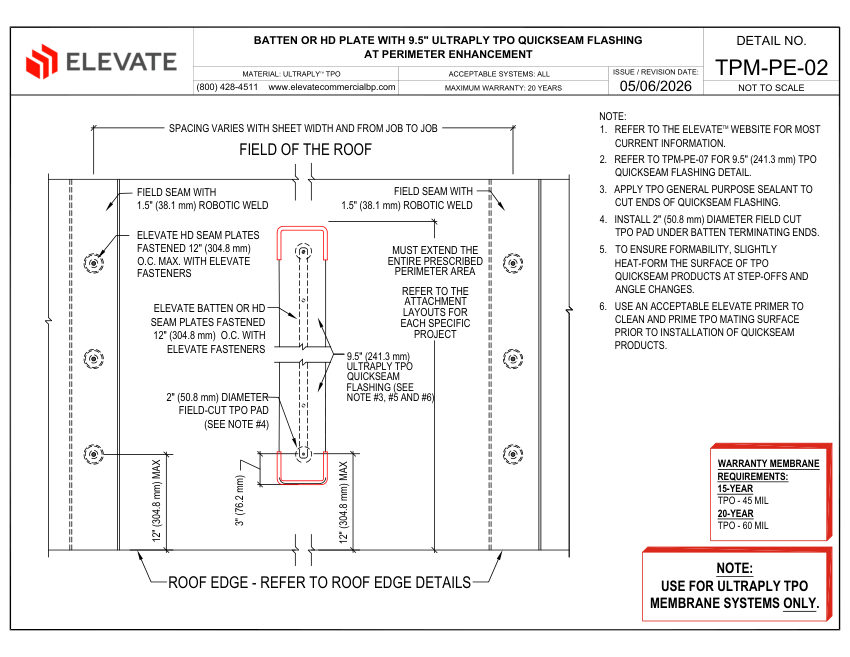

Elevate TPM-PE-02 (UT-PE-02) - BATTEN OR HD PLATE WITH 9.5" ULTRAPLY cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-PE-02 (UT-PE-02) - BATTEN OR HD PLATE WITH 9.5" ULTRAPLY
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-PE-02 (UT-PE-02) - BATTEN OR HD PLATE WITH 9.5" ULTRAPLY
DescriptionElevate TPO Quickseam Flashing (Roofing Flashing). Model TPM-PE-02 (UT-PE-02). 9.5" (241.3 mm) Ultraply TPO Quickseam Flashing; Compatible with all Elevate TPO membrane systems; Requires 2" (50.8 mm) diameter field-cut TPO pad under batten ends; Fastening spacing 12" (304.8 mm) O.C. maximum. material: Ultraply TPO
Connection size9.5" (241.3 mm)
End connectionRobotic weld (1.5" / 38.1 mm)
MountingFastened 12" (304.8 mm) O.C. max with Elevate fasteners
Dimensions9.5" (241.3 mm) width
Compliance20-Year Warranty (60 mil TPO), 15-Year Warranty (45 mil TPO).
