ElevateTPM-PE-06 (UT-PE-06 & PVC-PE-03) - PERIMETER ENHANCEMENT - H

Elevate Perimeter Enhancement HD Seam Plate or Batten Strip (Roofing Detail). Model TPM-PE-06. Compatible with TPO, PVC KEE, and MAX PVC membranes; Requires 8" (203.2 mm) thermoplastic cover strip or membrane strip; Fastening interval is 12" (304.8 mm) O.C. maximum; Minimum weld size is 2" (50.8 mm) hand weld or 1.5" (38.1 mm) robotic weld. material: TPO / PVC KEE / MAX PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-PE-06-UT-PE-06-PVC-PE-03---PERIMETER-ENHANCEMENT---H.pdfData sheet

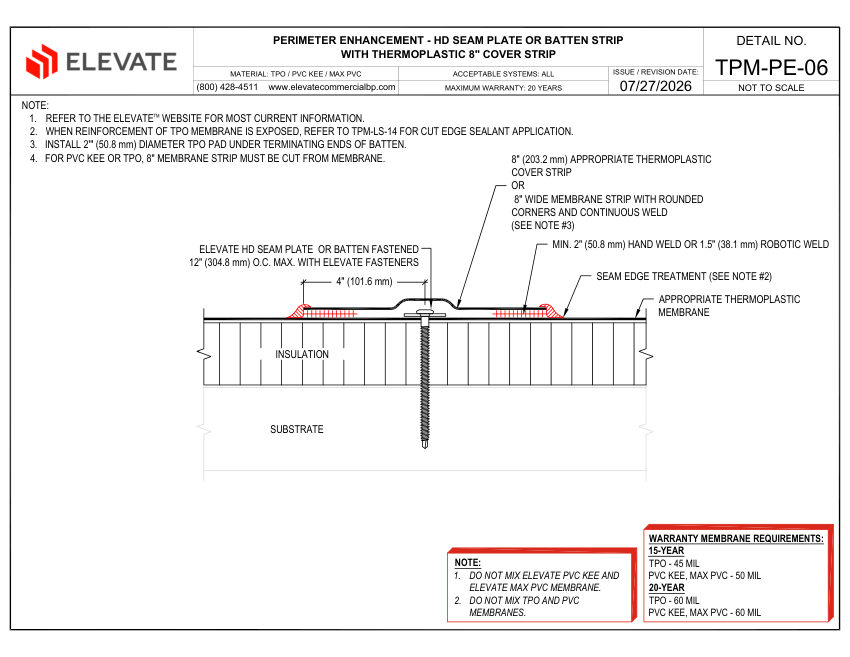

Elevate TPM-PE-06 (UT-PE-06 & PVC-PE-03) - PERIMETER ENHANCEMENT - H cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-PE-06 (UT-PE-06 & PVC-PE-03) - PERIMETER ENHANCEMENT - H
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-PE-06 (UT-PE-06 & PVC-PE-03) - PERIMETER ENHANCEMENT - H
DescriptionElevate Perimeter Enhancement HD Seam Plate or Batten Strip (Roofing Detail). Model TPM-PE-06. Compatible with TPO, PVC KEE, and MAX PVC membranes; Requires 8" (203.2 mm) thermoplastic cover strip or membrane strip; Fastening interval is 12" (304.8 mm) O.C. maximum; Minimum weld size is 2" (50.8 mm) hand weld or 1.5" (38.1 mm) robotic weld. material: TPO / PVC KEE / MAX PVC
Connection size8" (203.2 mm) cover strip
End connectionFastened 12" (304.8 mm) O.C. max with Elevate fasteners
MountingHand weld or robotic weld
Dimensions8" (203.2 mm) wide
Compliance20-Year Maximum Warranty.
