DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPM-RE-04 (UT-RE-04) - TPO ROOF EDGE WITH ANCHORGARD SP EXTE

Elevate TPO Roof Edge System (Roofing). Model TPM-RE-04 (UT-RE-04). Compatible with all Ultraply TPO membrane systems; Includes Elevate Ballast Paver and Protection Mat; Anchorgard S.S. fasteners spaced at 12 inches on center; Requires 1/2" minimum TPO membrane thickness. material: Ultraply TPO, Extruded Aluminum, Wood

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-RE-04-UT-RE-04---TPO-ROOF-EDGE-WITH-ANCHORGARD-SP-EXTE.pdfData sheet

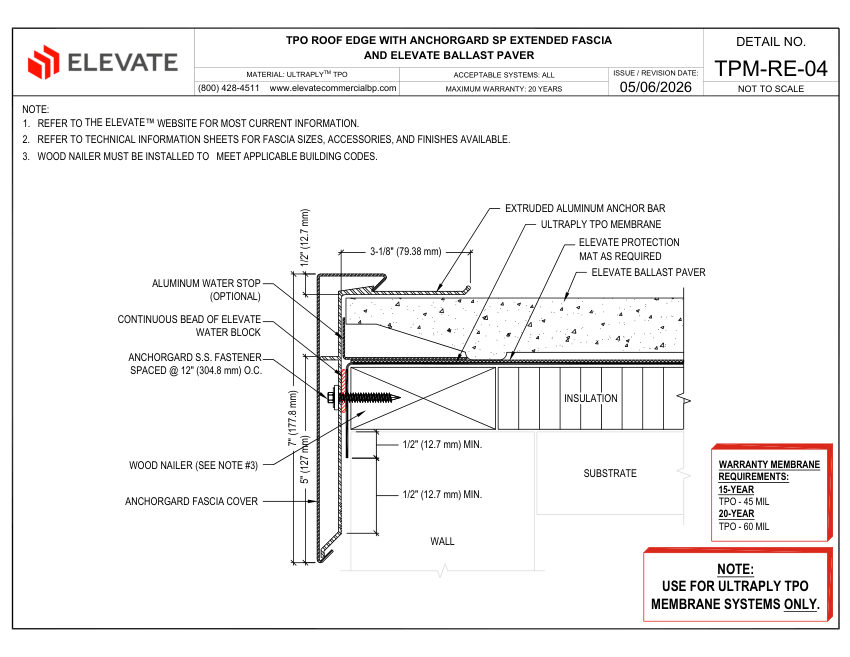

Elevate TPM-RE-04 (UT-RE-04) - TPO ROOF EDGE WITH ANCHORGARD SP EXTE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-RE-04 (UT-RE-04) - TPO ROOF EDGE WITH ANCHORGARD SP EXTE
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-RE-04 (UT-RE-04) - TPO ROOF EDGE WITH ANCHORGARD SP EXTE
DescriptionElevate TPO Roof Edge System (Roofing). Model TPM-RE-04 (UT-RE-04). Compatible with all Ultraply TPO membrane systems; Includes Elevate Ballast Paver and Protection Mat; Anchorgard S.S. fasteners spaced at 12 inches on center; Requires 1/2" minimum TPO membrane thickness. material: Ultraply TPO, Extruded Aluminum, Wood
Connection size1/2" (12.7 mm) TPO Membrane
End connectionAnchorgard S.S. Fastener @ 12" O.C.
MountingWood Nailer, Anchorgard Fascia Cover
Dimensions7" (177.8 mm) Edge Height, 5" (127 mm) Insulation
Compliance20-Year Warranty (60 mil TPO), 15-Year Warranty (45 mil TP
