DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPM-RE-07 (UT-RE-07 & PVC-RE-03) - THERMOPLASTIC ROOF EDGE W

Elevate Thermoplastic Roof Edge with Fascia (Roofing Edge System). Model TPM-RE-07. Compatible with TPO, PVC KEE, and MAX PVC membranes; Includes 3 1/2" (88.9 mm) wide splice plate at joints; Standard fascia not for membrane thickness > 0.060" (1.52 mm); Pre-punched holes 6" (152.4 mm) O.C. for fastening. material: 24 GA. GALV. STEEL, TPO / PVC KEE / MAX PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-RE-07-UT-RE-07-PVC-RE-03---THERMOPLASTIC-ROOF-EDGE-W.pdfData sheet

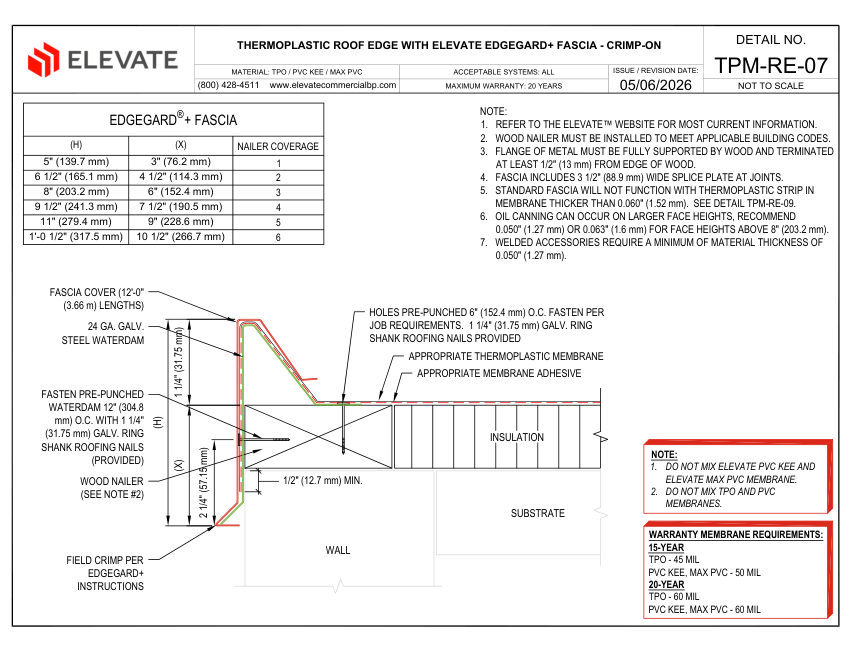

Elevate TPM-RE-07 (UT-RE-07 & PVC-RE-03) - THERMOPLASTIC ROOF EDGE W cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-RE-07 (UT-RE-07 & PVC-RE-03) - THERMOPLASTIC ROOF EDGE W
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-RE-07 (UT-RE-07 & PVC-RE-03) - THERMOPLASTIC ROOF EDGE W
DescriptionElevate Thermoplastic Roof Edge with Fascia (Roofing Edge System). Model TPM-RE-07. Compatible with TPO, PVC KEE, and MAX PVC membranes; Includes 3 1/2" (88.9 mm) wide splice plate at joints; Standard fascia not for membrane thickness > 0.060" (1.52 mm); Pre-punched holes 6" (152.4 mm) O.C. for fastening. material: 24 GA. GALV. STEEL, TPO / PVC KEE / MAX PVC
Connection size12'-0" (3.66 m) lengths
End connectionCrimp-on
FinishGalvanized
MountingWood Nailer, 1 1/4" Galv. Ring Shank Roofing Nails
DimensionsFace heights 5" to 1'-0 1/2" (139.7 mm to 317.5 mm).
