ElevateTPM-RE-11 (UT-RE-11) - TPO ROOF EDGE WITH ELEVATE EDGEGARD A

Elevate TPO Roof Edge with Elevate EdgeGard and Quickseam RPF Strip (Roofing Edge Detail). Model TPM-RE-11 (UT-RE-11). Includes 3 1/2" (88.9 mm) wide splice plate at joints; Standard fascia not for TPO/PVC strip in membrane thicker than 0.060"; Requires appropriate membrane adhesive between metal dam and membrane; Holes pre-punched 6" (152.4 mm) O.C. on waterdam. material: Ultraply TPO, 24 Ga. Galv. Steel Waterdam, Wood Nailer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-RE-11-UT-RE-11---TPO-ROOF-EDGE-WITH-ELEVATE-EDGEGARD-A.pdfData sheet

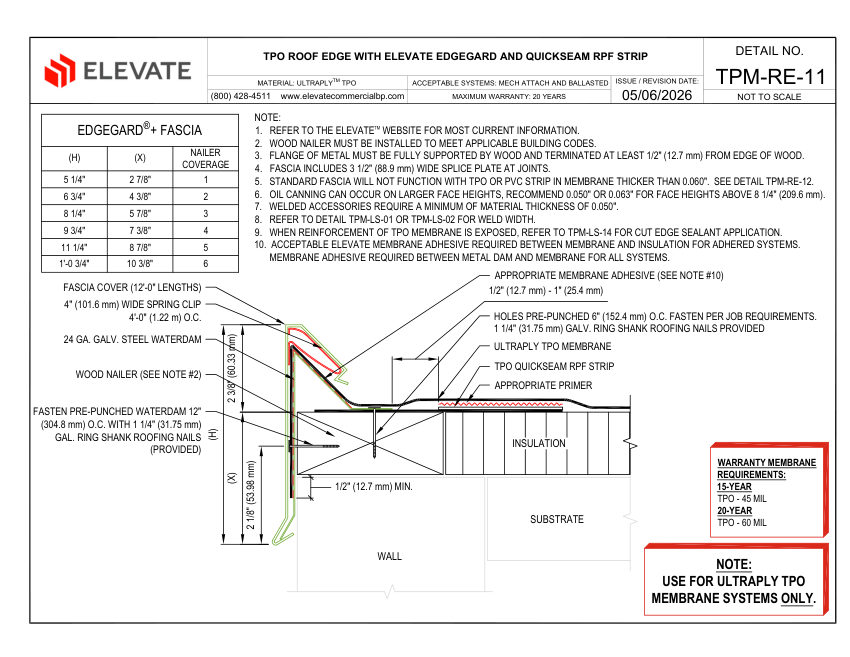

Elevate TPM-RE-11 (UT-RE-11) - TPO ROOF EDGE WITH ELEVATE EDGEGARD A cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-RE-11 (UT-RE-11) - TPO ROOF EDGE WITH ELEVATE EDGEGARD A
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-RE-11 (UT-RE-11) - TPO ROOF EDGE WITH ELEVATE EDGEGARD A
DescriptionElevate TPO Roof Edge with Elevate EdgeGard and Quickseam RPF Strip (Roofing Edge Detail). Model TPM-RE-11 (UT-RE-11). Includes 3 1/2" (88.9 mm) wide splice plate at joints; Standard fascia not for TPO/PVC strip in membrane thicker than 0.060"; Requires appropriate membrane adhesive between metal dam and membrane; Holes pre-punched 6" (152.4 mm) O.C. on waterdam. material: Ultraply TPO, 24 Ga. Galv. Steel Waterdam, Wood Nailer
Connection size4" (101.6 mm) wide spring clip
End connectionMechanical attachment and ballasted systems
FinishGalvanized
MountingPre-punched waterdam fastened
