DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPM-RE-20 (UT-RE-20) - TPO ROOF EDGE WITH FASCIAL METAL (BY

Elevate TPO Roof Edge with Fascia Metal (Roofing). Model TPM-RE-20 (UT-RE-20). Maximum Warranty: 20 Years

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-RE-20-UT-RE-20---TPO-ROOF-EDGE-WITH-FASCIAL-METAL-BY.pdfData sheet

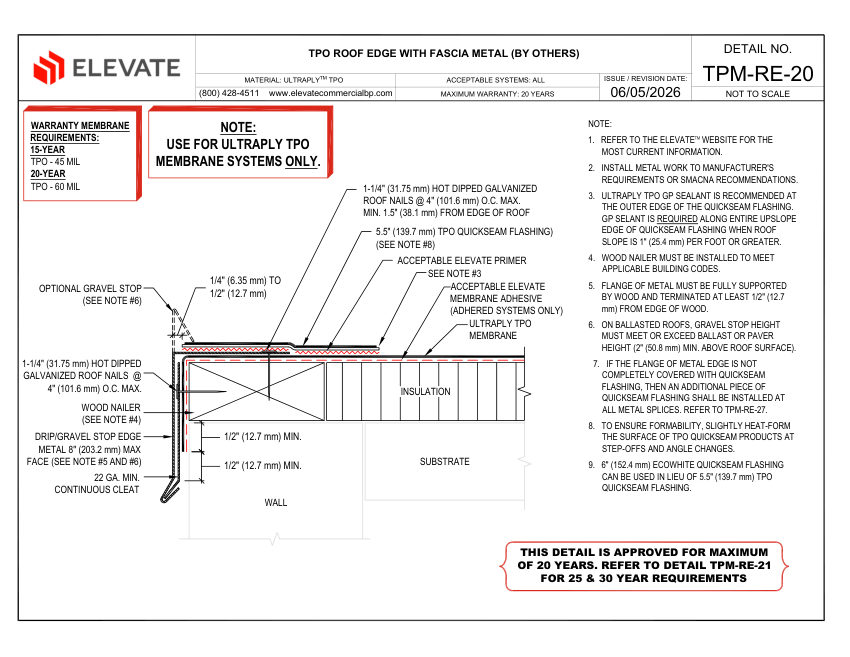

Elevate TPM-RE-20 (UT-RE-20) - TPO ROOF EDGE WITH FASCIAL METAL (BY cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-RE-20 (UT-RE-20) - TPO ROOF EDGE WITH FASCIAL METAL (BY
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-RE-20 (UT-RE-20) - TPO ROOF EDGE WITH FASCIAL METAL (BY
DescriptionElevate TPO Roof Edge with Fascia Metal (Roofing). Model TPM-RE-20 (UT-RE-20). Maximum Warranty: 20 Years
Membrane Requirement15-Year TPO (45 mil) or 20-Year TPO (60 mil)
Nail Spacing4" (101.6 mm) O.C. Max
Flange SupportFully supported by wood, terminated 1/2" (12.7 mm) min from edge. material: ULTRAPLY TPO, 22 GA. MIN. Metal, Hot Dipped Galvanized Roof Nails
Connection size5.5" (139.7 mm) TPO Quickseam Flashing
End connectionWood Nailer, 1-1/4" (31.75 mm) Hot Dipped Galvanized Roof Nails @ 4" (101.6 mm) O.C. Max
FinishHot Dipped Galvanized
MountingAdhered or Ballasted; dime
