ElevateTPM-RE-20B (UT-RE-20B) - TPO ROOF EDGE WITH ELEVATE GRAVEL S

Elevate TPO Roof Edge with Gravel Stop System (Roofing). Model TPM-RE-20B. Maximum warranty of 20 years; Requires 5.5" TPO Quickseam extending to within 3/8" of gravel stop rise; Includes 6" wide concealed splice plates; Stainless steel ring shank 5D common nails used for attachment. material: ULTRAPLY TPO, Stainless Steel, Galvanized

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-RE-20B-UT-RE-20B---TPO-ROOF-EDGE-WITH-ELEVATE-GRAVEL-S.pdfData sheet

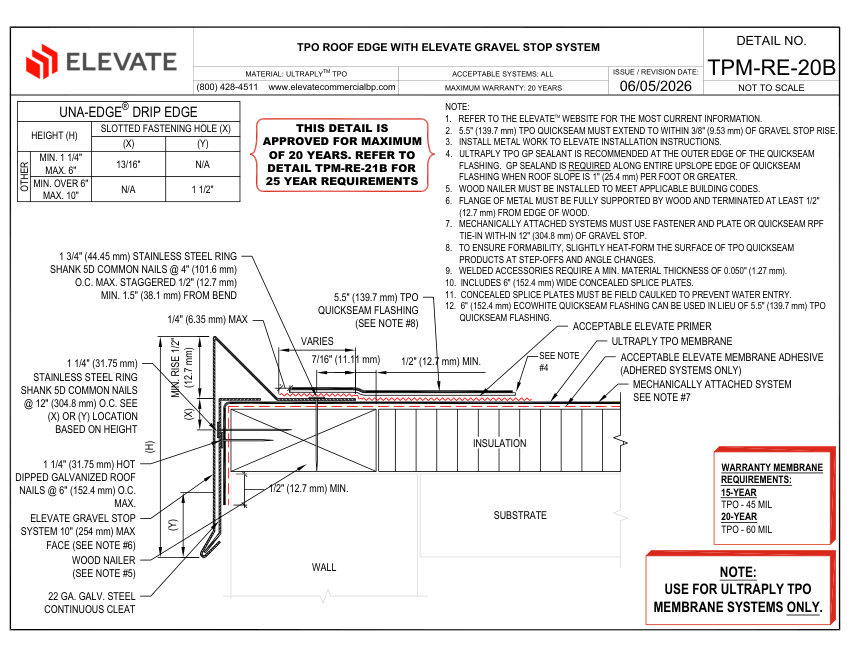

Elevate TPM-RE-20B (UT-RE-20B) - TPO ROOF EDGE WITH ELEVATE GRAVEL S cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-RE-20B (UT-RE-20B) - TPO ROOF EDGE WITH ELEVATE GRAVEL S
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-RE-20B (UT-RE-20B) - TPO ROOF EDGE WITH ELEVATE GRAVEL S
DescriptionElevate TPO Roof Edge with Gravel Stop System (Roofing). Model TPM-RE-20B. Maximum warranty of 20 years; Requires 5.5" TPO Quickseam extending to within 3/8" of gravel stop rise; Includes 6" wide concealed splice plates; Stainless steel ring shank 5D common nails used for attachment. material: ULTRAPLY TPO, Stainless Steel, Galvanized
Connection size5.5" (139.7 mm) Quickseam
End connectionMechanically Attached or Adhered
FinishEcoWhite (Optional)
Mounting5D Common Nails @ 4" O.C. Max Staggered
DimensionsMax Height 10" (254 mm), Min Rise 1/2" (12.7 mm).
