ElevateTPM-RE-24 (UT-RE-24) - ROOF EDGE WITH TPO QUICKSEAM FLASHING

Elevate Roof Edge Flashing Detail (Roofing). Model TPM-RE-24 (UT-RE-24). Maximum warranty of 20 years for 60 mil TPO membrane; Requires continuous bead of ULTRAPLY TPO GP Sealant along upslope edge for slopes 1"/ft or greater; Flashing must extend within 1/4" (6.35 mm) of metal edge and cover fasteners by min 2" (50.8 mm); T-Joint cover requires GP sealant along entire perimeter extending min 3" (76.2 mm) past overlaps. material: ULTRAPLY TPO

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-RE-24-UT-RE-24---ROOF-EDGE-WITH-TPO-QUICKSEAM-FLASHING.pdfData sheet

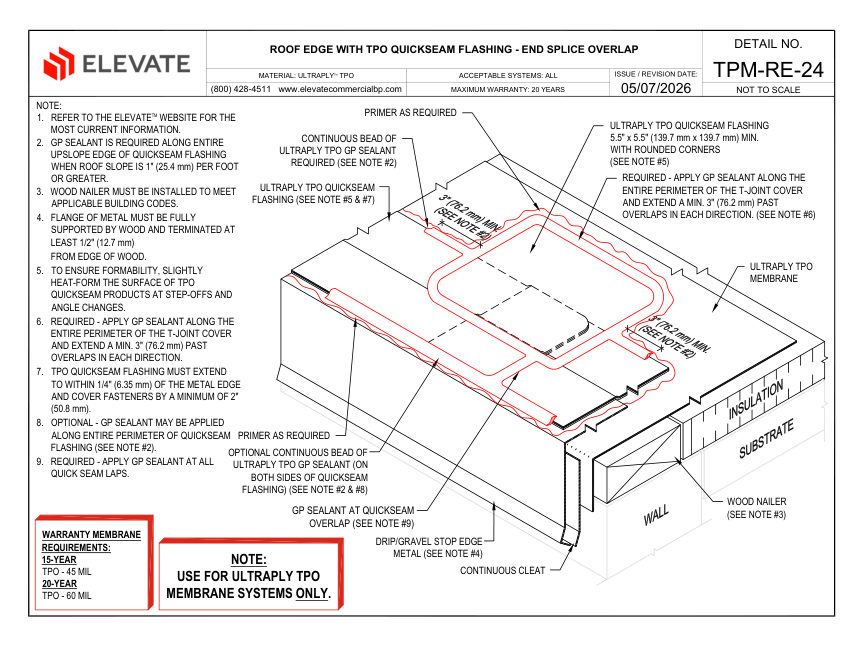

Elevate TPM-RE-24 (UT-RE-24) - ROOF EDGE WITH TPO QUICKSEAM FLASHING cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-RE-24 (UT-RE-24) - ROOF EDGE WITH TPO QUICKSEAM FLASHING
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-RE-24 (UT-RE-24) - ROOF EDGE WITH TPO QUICKSEAM FLASHING
DescriptionElevate Roof Edge Flashing Detail (Roofing). Model TPM-RE-24 (UT-RE-24). Maximum warranty of 20 years for 60 mil TPO membrane; Requires continuous bead of ULTRAPLY TPO GP Sealant along upslope edge for slopes 1"/ft or greater; Flashing must extend within 1/4" (6.35 mm) of metal edge and cover fasteners by min 2" (50.8 mm); T-Joint cover requires GP sealant along entire perimeter extending min 3" (76.2 mm) past overlaps. material: ULTRAPLY TPO
MountingWood Nailer
Dimensions5.5" x 5.5" (139.7 mm x 139.7 mm) min. flashing
ComplianceApplicable Building Codes.
