ElevateTPM-S-03 (UT-S-03) - THRU-WALL SCUPPER (NON-WELDED SLEEVE)

Elevate Thru-Wall Scupper (Roofing Detail). Model TPM-S-03 (UT-S-03). Non-welded metal scupper sleeve design; Compatible with all UltraPly TPO systems; Requires 45 mil TPO for 15-year warranty or 60 mil TPO for 20-year warranty; Includes 6" and 12" EcoWhite QuickSeam flashing. material: Non-welded metal sleeve, UltraPly TPO membrane

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-S-03-UT-S-03---THRU-WALL-SCUPPER-NON-WELDED-SLEEVE.pdfData sheet

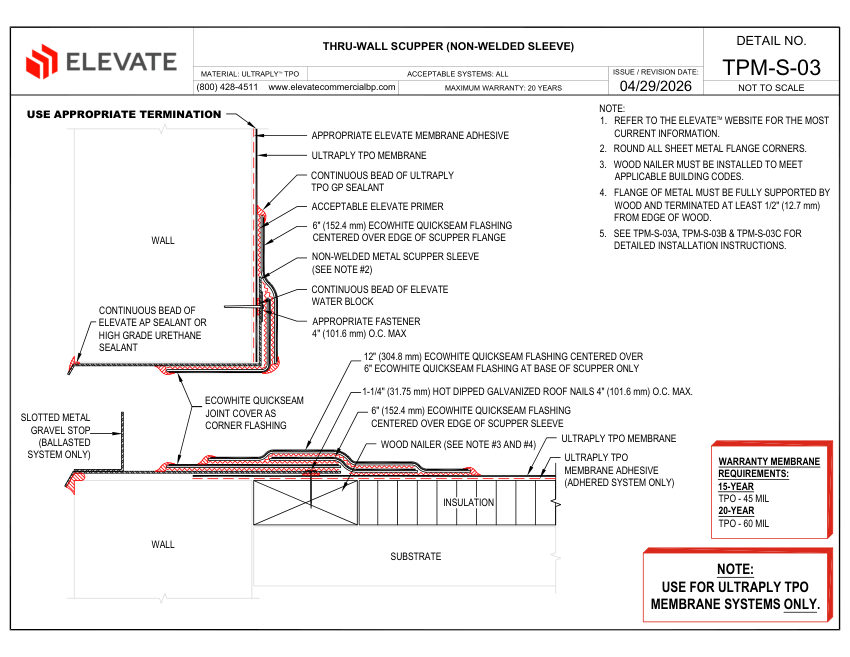

Elevate TPM-S-03 (UT-S-03) - THRU-WALL SCUPPER (NON-WELDED SLEEVE) cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-S-03 (UT-S-03) - THRU-WALL SCUPPER (NON-WELDED SLEEVE)
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-S-03 (UT-S-03) - THRU-WALL SCUPPER (NON-WELDED SLEEVE)
DescriptionElevate Thru-Wall Scupper (Roofing Detail). Model TPM-S-03 (UT-S-03). Non-welded metal scupper sleeve design; Compatible with all UltraPly TPO systems; Requires 45 mil TPO for 15-year warranty or 60 mil TPO for 20-year warranty; Includes 6" and 12" EcoWhite QuickSeam flashing. material: Non-welded metal sleeve, UltraPly TPO membrane
MountingWood nailer, 1-1/4" hot dipped galvanized roof nails 4" O.C. max
Dimensions6" (152.4 mm) EcoWhite QuickSeam flashing, 12" (304.8 mm) EcoWhite QuickSeam flashing
ComplianceUltraPly TPO membrane systems only.
