ElevateTPMXR-BT-01 (UTXR-BT-01 & PVCXR-BT-01) - BASE TIE-IN WITH ST

Elevate Base Tie-In (Roofing Detail). Model TPMXR-BT-01. Includes standard thermoplastic membrane flashing and HD seam plates; Fasteners positioned at 12" (305 mm) O.C. maximum; Maximum fastener length is 10" (254 mm); Weld width details refer to TPMXR-LS-01 or TPMXR-LS-03. material: Ultraply TPO XR, Elevate PVC KEE XR/XRT, Elevate Max PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPMXR-BT-01-UTXR-BT-01-PVCXR-BT-01---BASE-TIE-IN-WITH-ST.pdfData sheet

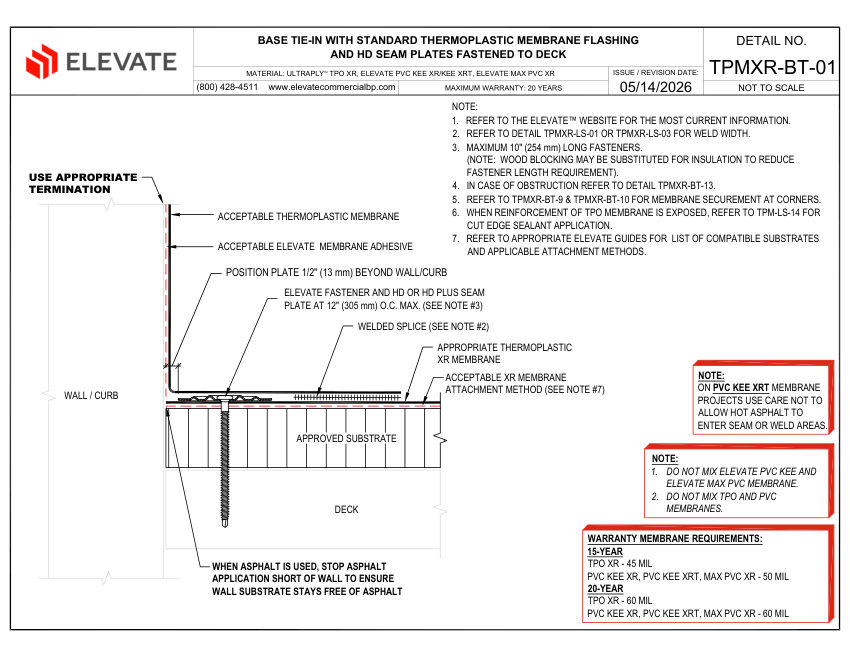

Elevate TPMXR-BT-01 (UTXR-BT-01 & PVCXR-BT-01) - BASE TIE-IN WITH ST cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPMXR-BT-01 (UTXR-BT-01 & PVCXR-BT-01) - BASE TIE-IN WITH ST
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPMXR-BT-01 (UTXR-BT-01 & PVCXR-BT-01) - BASE TIE-IN WITH ST
DescriptionElevate Base Tie-In (Roofing Detail). Model TPMXR-BT-01. Includes standard thermoplastic membrane flashing and HD seam plates; Fasteners positioned at 12" (305 mm) O.C. maximum; Maximum fastener length is 10" (254 mm); Weld width details refer to TPMXR-LS-01 or TPMXR-LS-03. material: Ultraply TPO XR, Elevate PVC KEE XR/XRT, Elevate Max PVC XR
End connectionWelded Splice
MountingFastened to Deck
DimensionsPlate 1/2" (13 mm) beyond wall/curb; Fasteners at 12" (305 mm) O.C. max; Max fastener length 10" (254 mm)
Compliance20-Year Maximum Warranty.
