ElevateTPMXR-BT-02 (UTXR-BT-02 & PVCXR-BT-02) - BASE TIE-IN WITH HD

Elevate Base Tie-In Detail (Roofing Membrane). Model TPMXR-BT-02. Compatible with TPO XR and PVC KEE XR/XRT membranes; Requires 45-60 mil membrane thickness depending on warranty tier; Seam plates installed at 12" (305 mm) on center maximum; Do not mix TPO and PVC membranes. material: ULTRAPLY TPO XR, ELEVATE PVC KEE XR/KEE XRT, ELEVATE MAX PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPMXR-BT-02-UTXR-BT-02-PVCXR-BT-02---BASE-TIE-IN-WITH-HD.pdfData sheet

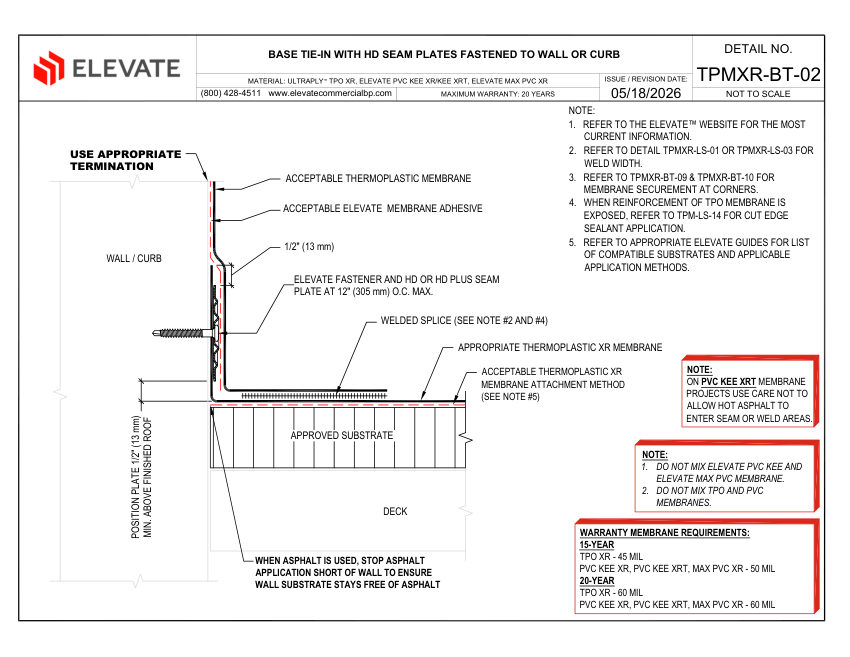

Elevate TPMXR-BT-02 (UTXR-BT-02 & PVCXR-BT-02) - BASE TIE-IN WITH HD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPMXR-BT-02 (UTXR-BT-02 & PVCXR-BT-02) - BASE TIE-IN WITH HD
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPMXR-BT-02 (UTXR-BT-02 & PVCXR-BT-02) - BASE TIE-IN WITH HD
DescriptionElevate Base Tie-In Detail (Roofing Membrane). Model TPMXR-BT-02. Compatible with TPO XR and PVC KEE XR/XRT membranes; Requires 45-60 mil membrane thickness depending on warranty tier; Seam plates installed at 12" (305 mm) on center maximum; Do not mix TPO and PVC membranes. material: ULTRAPLY TPO XR, ELEVATE PVC KEE XR/KEE XRT, ELEVATE MAX PVC XR
Connection size1/2" (13 mm) offset
End connectionWelded splice
MountingFastened to wall or curb with HD or HD Plus seam plates at 12" (305 mm) O.C. max
DimensionsPlate positioned 1/2" (13 mm) min. above finished roof
Compliance20-Year Ma
