ElevateTPMXR-BT-03 (UTXR-BT-03 & PVCXR-BT-03) - BASE TIE-IN AT CURB

Elevate Base Tie-In at Curb / Parapet (Roofing Detail). Model TPMXR-BT-03. Detail for base tie-in at curb or parapet with existing cant; Compatible with TPO XR and PVC KEE XR/XRT membranes; Requires wood nailer installed to meet building codes; Membrane adhesive required between membrane and insulation for adhered systems. material: ULTRAPLY TPO XR, ELEVATE PVC KEE XR/KEE XRT, ELEVATE MAX PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPMXR-BT-03-UTXR-BT-03-PVCXR-BT-03---BASE-TIE-IN-AT-CURB.pdfData sheet

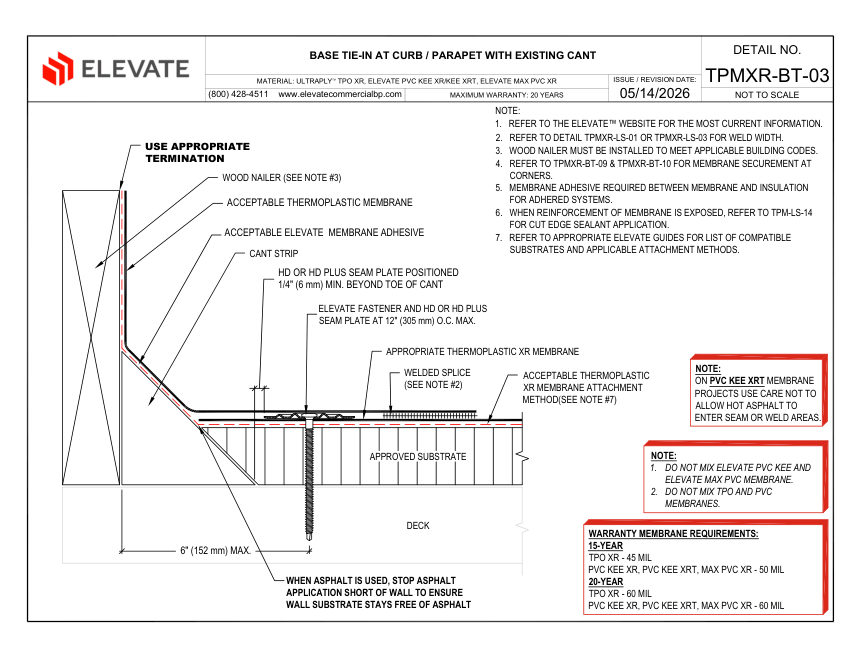

Elevate TPMXR-BT-03 (UTXR-BT-03 & PVCXR-BT-03) - BASE TIE-IN AT CURB cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPMXR-BT-03 (UTXR-BT-03 & PVCXR-BT-03) - BASE TIE-IN AT CURB
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPMXR-BT-03 (UTXR-BT-03 & PVCXR-BT-03) - BASE TIE-IN AT CURB
DescriptionElevate Base Tie-In at Curb / Parapet (Roofing Detail). Model TPMXR-BT-03. Detail for base tie-in at curb or parapet with existing cant; Compatible with TPO XR and PVC KEE XR/XRT membranes; Requires wood nailer installed to meet building codes; Membrane adhesive required between membrane and insulation for adhered systems. material: ULTRAPLY TPO XR, ELEVATE PVC KEE XR/KEE XRT, ELEVATE MAX PVC XR
MountingHD or HD Plus Seam Plate at 12" (305 mm) O.C. Max
DimensionsSeam Plate 1/4" (6 mm) Min. Beyond Toe of Cant
Compliance20-Year Maximum Warranty.
