ElevateTPMXR-BT-07 (UTXR-BT-07 & PVCXR-BT-07) - BASE TIE-IN WITH TH

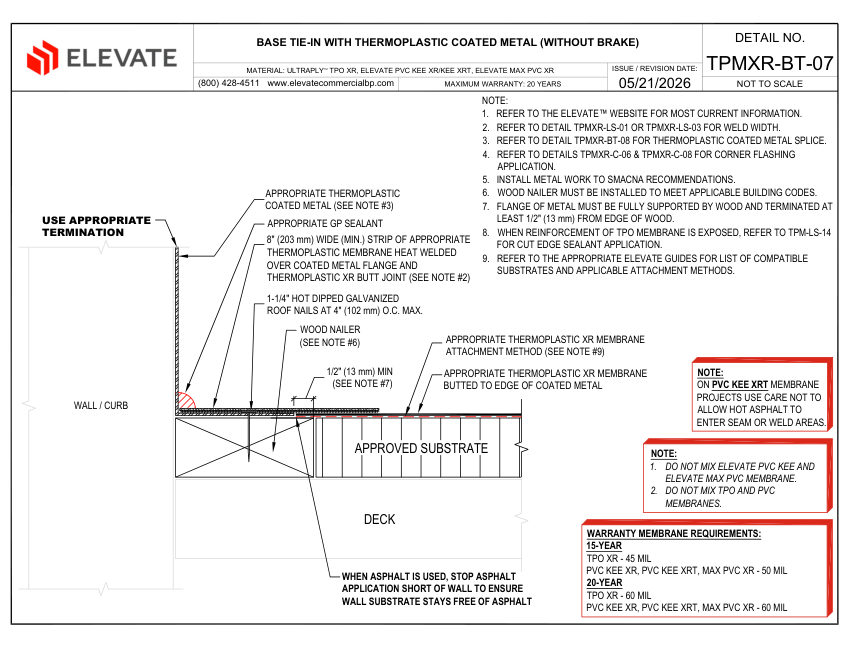

Elevate Base Tie-In (Roofing Detail). Model TPMXR-BT-07. Detail for base tie-in with thermoplastic coated metal without brake; Compatible with TPO XR, PVC KEE XR, PVC KEE XRT, and ELEVATE MAX PVC XR membranes; Requires 8" (203 mm) wide minimum strip of thermoplastic membrane heat welded over coated metal flange; Metal flange must be fully supported by wood and terminated at least 1/2" (13 mm) from edge. material: Thermoplastic Coated Metal, Wood Nailer, TPO XR, PVC KEE XR, PVC KEE XRT, ELEVATE MAX PVC XR
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Elevate
- Catalog no.
- TPMXR-BT-07 (UTXR-BT-07 & PVCXR-BT-07) - BASE TIE-IN WITH TH
- Product type
- Roofing
- MasterFormat
- 07
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | TPMXR-BT-07 (UTXR-BT-07 & PVCXR-BT-07) - BASE TIE-IN WITH TH |
|---|---|
| Description | Elevate Base Tie-In (Roofing Detail). Model TPMXR-BT-07. Detail for base tie-in with thermoplastic coated metal without brake; Compatible with TPO XR, PVC KEE XR, PVC KEE XRT, and ELEVATE MAX PVC XR membranes; Requires 8" (203 mm) wide minimum strip of thermoplastic membrane heat welded over coated metal flange; Metal flange must be fully supported by wood and terminated at least 1/2" (13 mm) from edge. material: Thermoplastic Coated Metal, Wood Nailer, TPO XR, PVC KEE XR, PVC KEE XRT, ELEVATE MAX PVC XR |
| End connection | Heat Welded, Hot Dipped Galvanized Roof Nails |
| Finish | Thermoplastic Coate |
