ElevateTPMXR-BT-09 (UTXR-BT-09 & PVCXR-BT-09) - MEMBRANE SECUREMENT

Elevate Membrane Securement Detail (Roofing Membrane). Model TPMXR-BT-09. Maximum 10" (254 mm) long fasteners; 1/2" (13 mm) minimum insulation thickness; Do not mix Elevate PVC KEE and Elevate Max PVC membranes; Do not mix TPO and PVC membranes. material: ULTRAPLY TPO XR, ELEVATE PVC KEE XR/KEE XRT, ELEVATE MAX PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPMXR-BT-09-UTXR-BT-09-PVCXR-BT-09---MEMBRANE-SECUREMENT.pdfData sheet

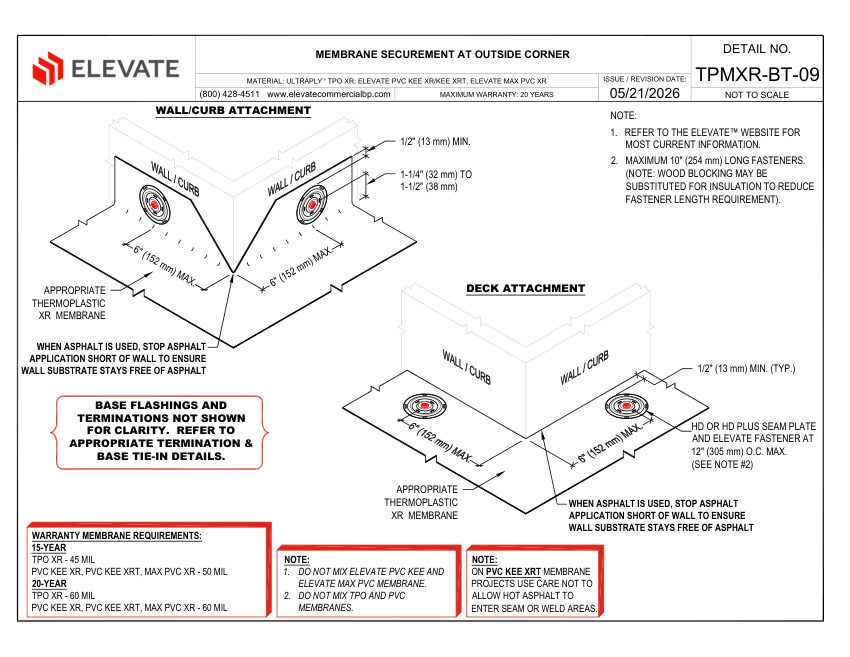

Elevate TPMXR-BT-09 (UTXR-BT-09 & PVCXR-BT-09) - MEMBRANE SECUREMENT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPMXR-BT-09 (UTXR-BT-09 & PVCXR-BT-09) - MEMBRANE SECUREMENT
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPMXR-BT-09 (UTXR-BT-09 & PVCXR-BT-09) - MEMBRANE SECUREMENT
DescriptionElevate Membrane Securement Detail (Roofing Membrane). Model TPMXR-BT-09. Maximum 10" (254 mm) long fasteners; 1/2" (13 mm) minimum insulation thickness; Do not mix Elevate PVC KEE and Elevate Max PVC membranes; Do not mix TPO and PVC membranes. material: ULTRAPLY TPO XR, ELEVATE PVC KEE XR/KEE XRT, ELEVATE MAX PVC XR
Connection size12" (305 mm) O.C. MAX.
End connectionHD or HD Plus Seam Plate and Elevate Fastener
MountingWall/Curb and Deck Attachment
Dimensions1-1/4" (32 mm) to 1-1/2" (38 mm) wall thickness; 6" (152 mm) max deck attachment
Compliance20-Year Maximum Warranty.
