DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPMXR-BT-12 (UTXR-BT-12 & PVCXR-BT-12) - BASE TIE-IN WITH FO

Elevate Base Tie-In (Roofing Detail). Model TPMXR-BT-12. Compatible with TPO and PVC thermoplastic membranes; Requires 45-60 mil membrane thickness depending on warranty period; Adhesive application includes Twin Jet or I.S.O. Spray R; Do not mix TPO and PVC membranes. material: Ultraply TPO XR, Elevate PVC XR, KEE XR, KEE XRT, Elevate Max PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPMXR-BT-12-UTXR-BT-12-PVCXR-BT-12---BASE-TIE-IN-WITH-FO.pdfData sheet

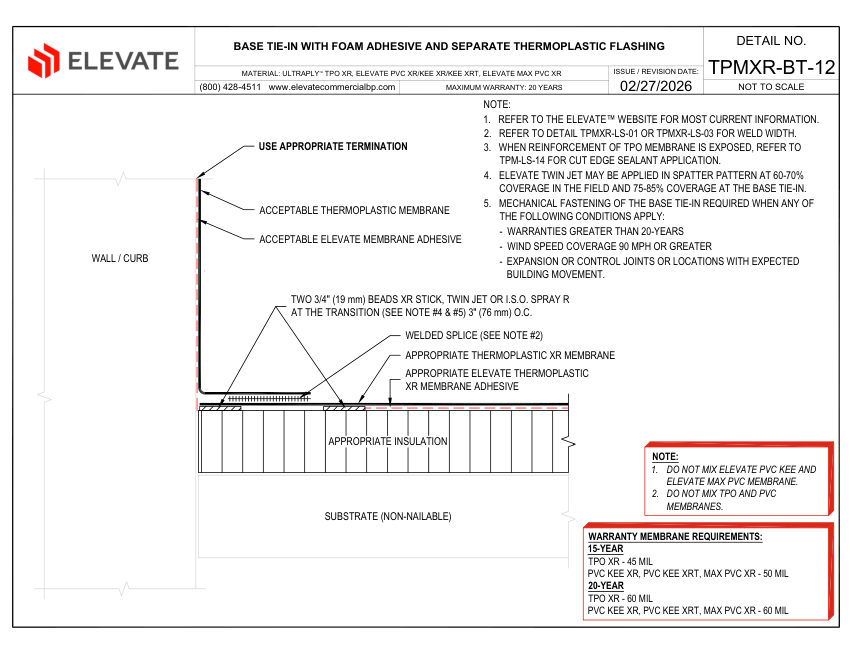

Elevate TPMXR-BT-12 (UTXR-BT-12 & PVCXR-BT-12) - BASE TIE-IN WITH FO cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPMXR-BT-12 (UTXR-BT-12 & PVCXR-BT-12) - BASE TIE-IN WITH FO
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPMXR-BT-12 (UTXR-BT-12 & PVCXR-BT-12) - BASE TIE-IN WITH FO
DescriptionElevate Base Tie-In (Roofing Detail). Model TPMXR-BT-12. Compatible with TPO and PVC thermoplastic membranes; Requires 45-60 mil membrane thickness depending on warranty period; Adhesive application includes Twin Jet or I.S.O. Spray R; Do not mix TPO and PVC membranes. material: Ultraply TPO XR, Elevate PVC XR, KEE XR, KEE XRT, Elevate Max PVC XR
End connectionFoam Adhesive, Separate Thermoplastic Flashing
MountingMechanical fastening required for warranties >20 years, wind speed >=90 MPH, or expansion joints
Dimensions3/4" (19 mm) beads at 3" (76 mm) O.C.
Compliance20-Year Maximum
