ElevateTPMXR-LS-02 (UTXR-LS-02 & PVCXR-LS-02) - THERMOPLASTIC XR ME

Elevate Thermoplastic XR Membrane Splice (Roofing Membrane). Model TPMXR-LS-02. Detail No. TPMXR-LS-02; Compatible with TPO XR and PVC KEE XR/XRT/MAX PVC XR membranes; Requires 8-inch (203.2 mm) thermoplastic strip or membrane; 4-inch (102 mm) overlap on each side of the splice. material: ULTRAPLY TPO XR, ELEVATE PVC KEE XR/KEE XRT, ELEVATE MAX PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPMXR-LS-02-UTXR-LS-02-PVCXR-LS-02---THERMOPLASTIC-XR-ME.pdfData sheet

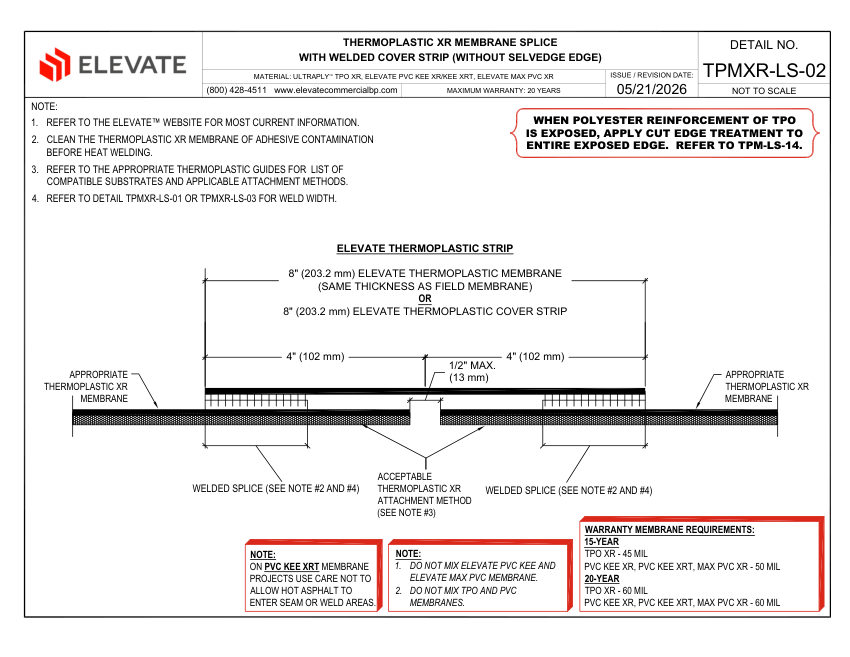

Elevate TPMXR-LS-02 (UTXR-LS-02 & PVCXR-LS-02) - THERMOPLASTIC XR ME cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPMXR-LS-02 (UTXR-LS-02 & PVCXR-LS-02) - THERMOPLASTIC XR ME
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPMXR-LS-02 (UTXR-LS-02 & PVCXR-LS-02) - THERMOPLASTIC XR ME
DescriptionElevate Thermoplastic XR Membrane Splice (Roofing Membrane). Model TPMXR-LS-02. Detail No. TPMXR-LS-02; Compatible with TPO XR and PVC KEE XR/XRT/MAX PVC XR membranes; Requires 8-inch (203.2 mm) thermoplastic strip or membrane; 4-inch (102 mm) overlap on each side of the splice. material: ULTRAPLY TPO XR, ELEVATE PVC KEE XR/KEE XRT, ELEVATE MAX PVC XR
Connection size8" (203.2 mm) strip width
End connectionWelded splice
MountingWelded splice with welded cover strip
Dimensions4" (102 mm) overlap, 1/2" (13 mm) max gap
Compliance20-Year Maximum Warranty.
