ElevateTPMXR-RE-02 (UTXR-RE-02 & PVCXR-RE-02) - THERMOPLASTIC XR ME

Elevate Thermoplastic XR Membrane Roof Edge with Elevate EdgeGard+ Fascia (Roofing). Model TPMXR-RE-02. Includes 3 1/2" (88.9 mm) wide splice plate at joints; Standard fascia not compatible with membrane thicker than 0.060"; Welded accessories require minimum material thickness of 0.050"; Waterdam pre-punched 6" (152.4 mm) O.C.. material: ULTRAPLY TPO XR, ELEVATE PVC KEE XR/KEE XRT, ELEVATE MAX PVC XR, 24 GA. GALV. STEEL

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPMXR-RE-02-UTXR-RE-02-PVCXR-RE-02---THERMOPLASTIC-XR-ME.pdfData sheet

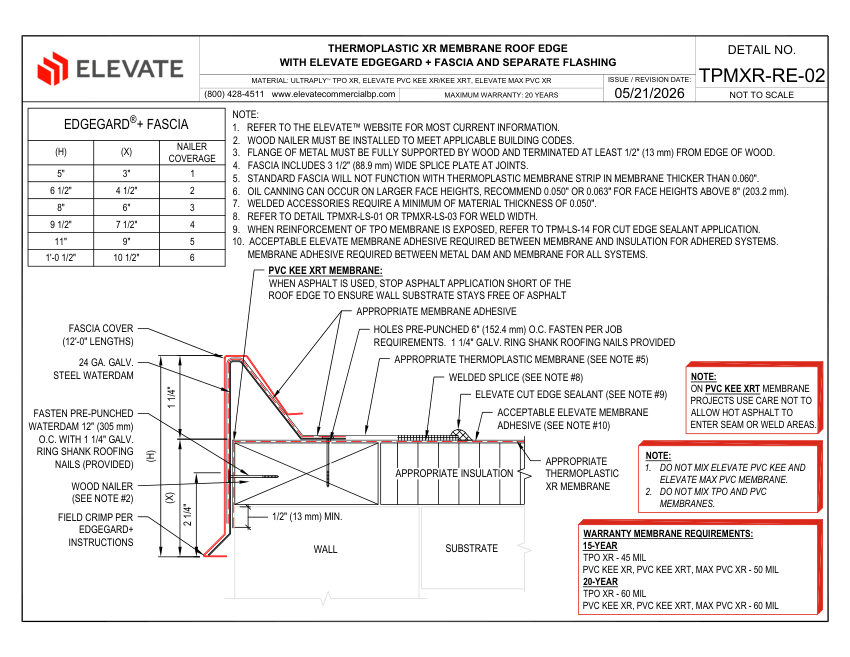

Elevate TPMXR-RE-02 (UTXR-RE-02 & PVCXR-RE-02) - THERMOPLASTIC XR ME cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPMXR-RE-02 (UTXR-RE-02 & PVCXR-RE-02) - THERMOPLASTIC XR ME
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPMXR-RE-02 (UTXR-RE-02 & PVCXR-RE-02) - THERMOPLASTIC XR ME
DescriptionElevate Thermoplastic XR Membrane Roof Edge with Elevate EdgeGard+ Fascia (Roofing). Model TPMXR-RE-02. Includes 3 1/2" (88.9 mm) wide splice plate at joints; Standard fascia not compatible with membrane thicker than 0.060"; Welded accessories require minimum material thickness of 0.050"; Waterdam pre-punched 6" (152.4 mm) O.C.. material: ULTRAPLY TPO XR, ELEVATE PVC KEE XR/KEE XRT, ELEVATE MAX PVC XR, 24 GA. GALV. STEEL
End connectionWelded Splice
FinishGalvanized
Mounting1 1/4" Galv. Ring Shank Roofing Nails
DimensionsFascia Cover 12'-0" Lengths
Compliance20 Years Maximum Warra
