DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPMXR-RE-05 (UTXR-RE-05 & PVCXR-RE-05) - ROOF EDGE WITH THER

Elevate Roof Edge Detail (Roofing). Model TPMXR-RE-05. Maximum warranty of 20 years; Compatible with TPO XR (45/60 mil) and PVC KEE XR/XRT/Max PVC XR (50/60 mil) membranes; Requires heat resistant tape over thermoplastic coated metal splice; Metal flange must be fully supported by wood and terminated at least 1/2" (13 mm) from edge. material: Thermoplastic Coated Metal, Ultraply TPO XR, Elevate PVC KEE XR/XRT, Elevate Max PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPMXR-RE-05-UTXR-RE-05-PVCXR-RE-05---ROOF-EDGE-WITH-THER.pdfData sheet

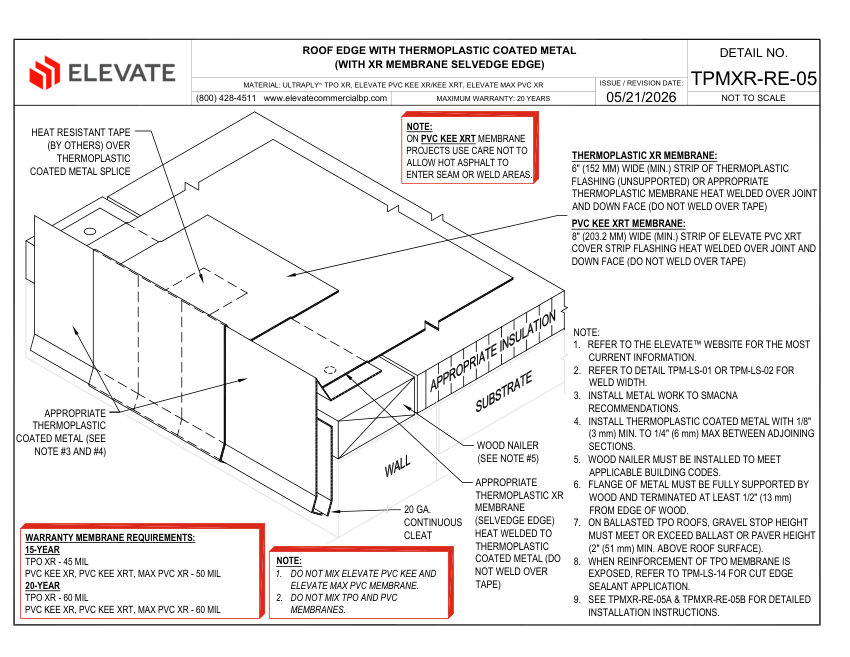

Elevate TPMXR-RE-05 (UTXR-RE-05 & PVCXR-RE-05) - ROOF EDGE WITH THER cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPMXR-RE-05 (UTXR-RE-05 & PVCXR-RE-05) - ROOF EDGE WITH THER
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPMXR-RE-05 (UTXR-RE-05 & PVCXR-RE-05) - ROOF EDGE WITH THER
DescriptionElevate Roof Edge Detail (Roofing). Model TPMXR-RE-05. Maximum warranty of 20 years; Compatible with TPO XR (45/60 mil) and PVC KEE XR/XRT/Max PVC XR (50/60 mil) membranes; Requires heat resistant tape over thermoplastic coated metal splice; Metal flange must be fully supported by wood and terminated at least 1/2" (13 mm) from edge. material: Thermoplastic Coated Metal, Ultraply TPO XR, Elevate PVC KEE XR/XRT, Elevate Max PVC XR
MountingWood Nailer, 20 Ga. Continuous Cleat
DimensionsTPO XR: 6" (152 mm) min. strip
PVC KEE XRT8" (203.2 mm) min. strip
Metal gap1/8" (3 mm) min. to 1/4"
