ElevateTPO-SA-E-08 - EXPANSION JOINT (FIELD FABRICATED) WITH TPO SA

Elevate Expansion Joint (Roofing). Model TPO-SA-E-08. Membrane thickness options: 60 mil (20-year warranty) or 80 mil (30-year warranty); Compressible tube diameter must exceed deck opening by 50% min or designed movement; Requires approved Elevate primer on all vertical surfaces when TPO SA is used for flashing; Includes 5.5" (139.7 mm) TPO strip with cut edge sealant or Quickseam flashing. material: ULTRAPLY TPO SA, Quickseam TPO Flashing, Hot Dipped Galvanized Roof Nails, Metal or HD Seam Plate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPO-SA-E-08---EXPANSION-JOINT-FIELD-FABRICATED-WITH-TPO-SA.pdfData sheet

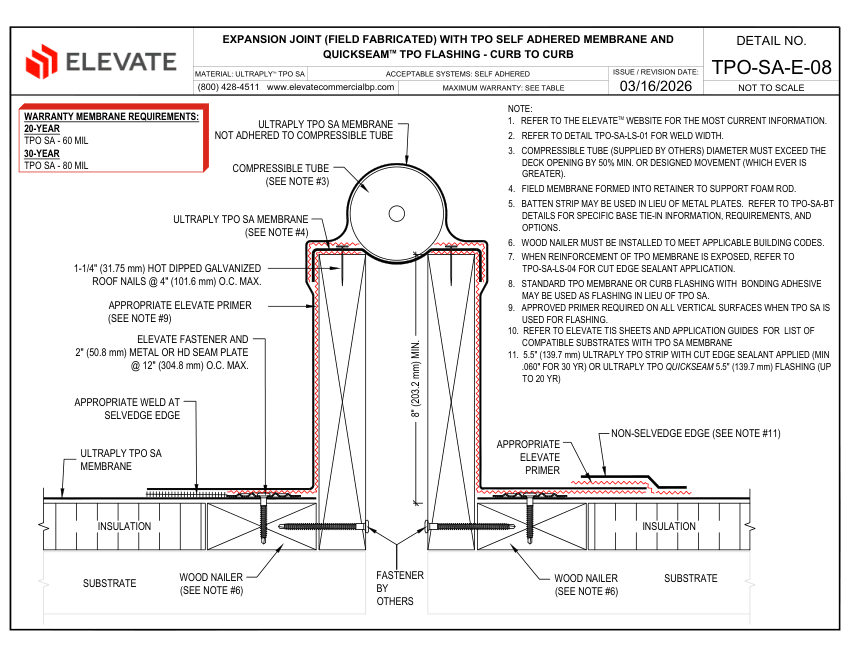

Elevate TPO-SA-E-08 - EXPANSION JOINT (FIELD FABRICATED) WITH TPO SA cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPO-SA-E-08 - EXPANSION JOINT (FIELD FABRICATED) WITH TPO SA
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPO-SA-E-08 - EXPANSION JOINT (FIELD FABRICATED) WITH TPO SA
DescriptionElevate Expansion Joint (Roofing). Model TPO-SA-E-08. Membrane thickness options: 60 mil (20-year warranty) or 80 mil (30-year warranty); Compressible tube diameter must exceed deck opening by 50% min or designed movement; Requires approved Elevate primer on all vertical surfaces when TPO SA is used for flashing; Includes 5.5" (139.7 mm) TPO strip with cut edge sealant or Quickseam flashing. material: ULTRAPLY TPO SA, Quickseam TPO Flashing, Hot Dipped Galvanized Roof Nails, Metal or HD Seam Plate
Connection size8" (203.2 mm) MIN. Flashing Width
End connectionCurb to Curb
MountingField
