DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPO-SA-P-03 - PENETRATION WITH ULTRAPLY TPO FLASHING

Elevate Penetration Flashing (Roofing Flashing). Model TPO-SA-P-03. Material: Ultraply TPO SA; Compatible with 1/2" to 1" pipe penetrations; Maximum penetration diameter: 12"; Requires continuous bead of Ultraply TPO GP sealant. material: Ultraply TPO SA

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPO-SA-P-03---PENETRATION-WITH-ULTRAPLY-TPO-FLASHING.pdfData sheet

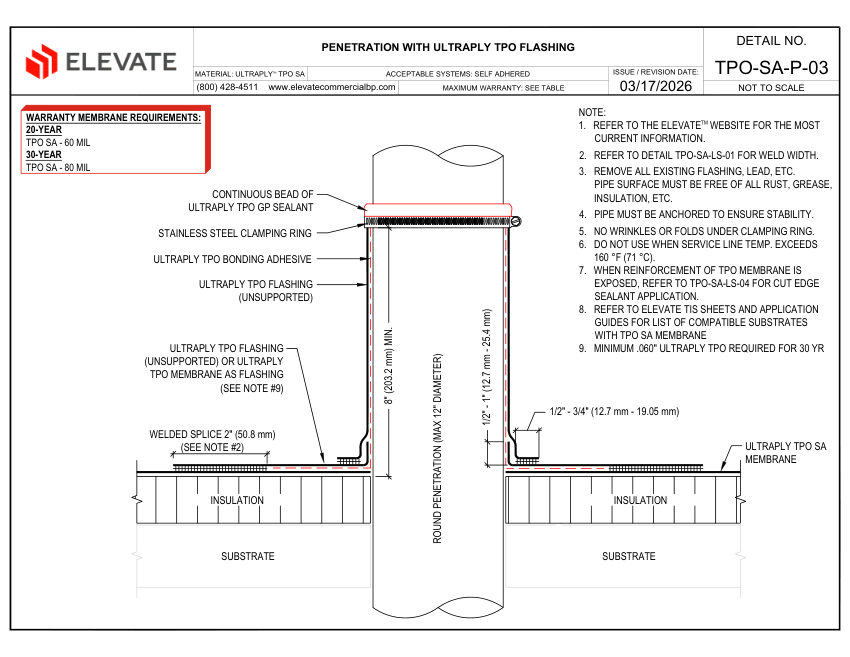

Elevate TPO-SA-P-03 - PENETRATION WITH ULTRAPLY TPO FLASHING cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPO-SA-P-03 - PENETRATION WITH ULTRAPLY TPO FLASHING
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPO-SA-P-03 - PENETRATION WITH ULTRAPLY TPO FLASHING
DescriptionElevate Penetration Flashing (Roofing Flashing). Model TPO-SA-P-03. Material: Ultraply TPO SA; Compatible with 1/2" to 1" pipe penetrations; Maximum penetration diameter: 12"; Requires continuous bead of Ultraply TPO GP sealant. material: Ultraply TPO SA
Connection size1/2" - 1" (12.7 mm - 25.4 mm) pipe; Max 12" (304.8 mm) penetration diameter
End connectionWelded splice, Stainless steel clamping ring, TPO bonding adhesive
MountingSelf-adhered to substrate
Dimensions8" (203.2 mm) min. flashing width; 2" (50.8 mm) welded splice
ComplianceMax service temp 160°F (71°C); Min .060" TPO
