ElevateTPO-SA-P-05 - PENETRATION WITH ULTRAPLY TPO COATED METAL PEN

Elevate TPO Coated Metal Penetration Pocket (Roofing Penetration). Model TPO-SA-P-05. Maximum service line temperature 160 °F (71 °C); Requires ELEVATE Pourable Sealer with minimum 2" (51 mm) depth

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPO-SA-P-05---PENETRATION-WITH-ULTRAPLY-TPO-COATED-METAL-PEN.pdfData sheet

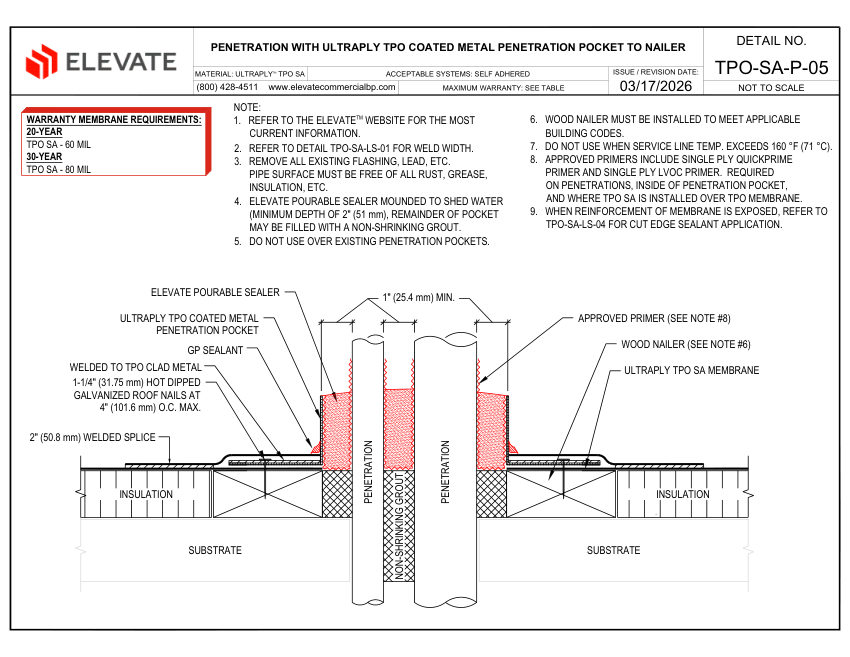

Elevate TPO-SA-P-05 - PENETRATION WITH ULTRAPLY TPO COATED METAL PEN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPO-SA-P-05 - PENETRATION WITH ULTRAPLY TPO COATED METAL PEN
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPO-SA-P-05 - PENETRATION WITH ULTRAPLY TPO COATED METAL PEN
DescriptionElevate TPO Coated Metal Penetration Pocket (Roofing Penetration). Model TPO-SA-P-05. Maximum service line temperature 160 °F (71 °C); Requires ELEVATE Pourable Sealer with minimum 2" (51 mm) depth
Approved primersSingle Ply QuickPrime and Single Ply LVOC Primer; Wood nailer must meet applicable building codes. material: Ultraply TPO Coated Metal
End connectionWelded to TPO Clad Metal
FinishHot Dipped Galvanized
Mounting1-1/4" (31.75 mm) Hot Dipped Galvanized Roof Nails at 4" (101.6 mm) O.C. Max
Dimensions2" (50.8 mm) Welded Splice
ComplianceAcceptable for TPO-SA-60 Mil (20-Ye
