DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPO-SA-RE-01 - TPO SA ROOF EDGE WITH ANCHORGARD SP FASCIA

Elevate Self-Adhered TPO Roof Edge with Fascia (Roofing). Model TPO-SA-RE-01. Material: ULTRAPLY TPO SA

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPO-SA-RE-01---TPO-SA-ROOF-EDGE-WITH-ANCHORGARD-SP-FASCIA.pdfData sheet

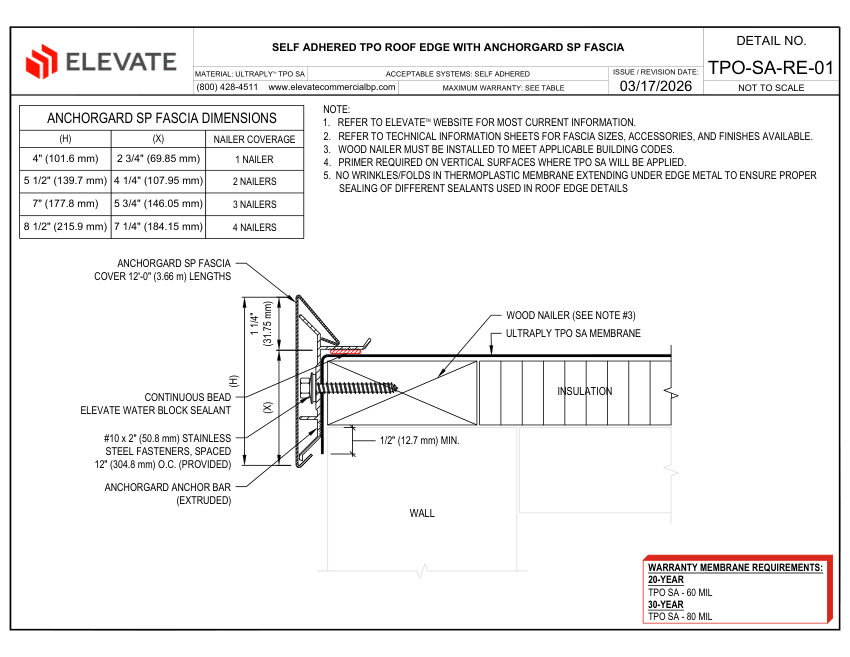

Elevate TPO-SA-RE-01 - TPO SA ROOF EDGE WITH ANCHORGARD SP FASCIA cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPO-SA-RE-01 - TPO SA ROOF EDGE WITH ANCHORGARD SP FASCIA
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPO-SA-RE-01 - TPO SA ROOF EDGE WITH ANCHORGARD SP FASCIA
DescriptionElevate Self-Adhered TPO Roof Edge with Fascia (Roofing). Model TPO-SA-RE-01. Material: ULTRAPLY TPO SA
Fascia Heights4", 5 1/2", 7", 8 1/2"
Fasteners#10 x 2" Stainless Steel, 12" O.C.
SealantElevate Water Block Sealant. material: ULTRAPLY TPO SA, Wood Nailer, Stainless Steel Fasteners
Connection size12'-0" (3.66 m) lengths
End connectionContinuous bead Elevate Water Block Sealant
Mounting1/4" (31.75 mm) cover, 1 1/4" wood nailer, #10 x 2" stainless steel fasteners spaced 12" O.C.
Dimensions4" (101.6 mm) to 8 1/2" (215.9 mm) height options
ComplianceApplicable building co
