DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

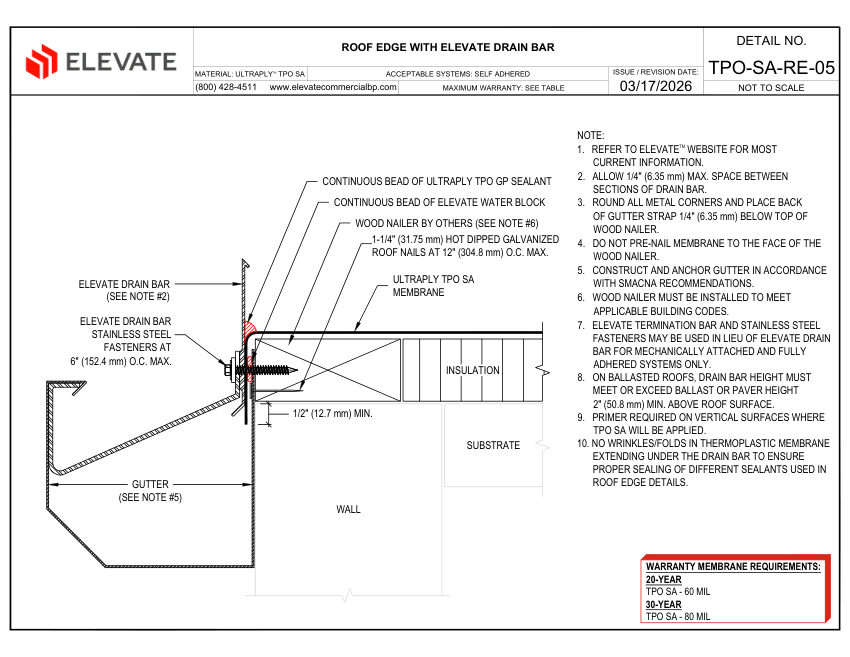

ElevateTPO-SA-RE-05 - ROOF EDGE WITH DRAIN BAR

Name: Elevate TPO-SA-RE-05 - ROOF EDGE WITH DRAIN BAR
Brand: Elevate
SKU: TPO-SA-RE-05 - ROOF EDGE WITH DRAIN BAR

Elevate Roof Edge with Drain Bar (Roofing Detail). Model TPO-SA-RE-05. Material: ULTRAPLY TPO SA Membrane

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	TPO-SA-RE-05 - ROOF EDGE WITH DRAIN BAR
Description	Elevate Roof Edge with Drain Bar (Roofing Detail). Model TPO-SA-RE-05. Material: ULTRAPLY TPO SA Membrane
Fasteners	Stainless Steel at 6" (152.4 mm) O.C. max
Roof Nails	1-1/4" (31.75 mm) Hot Dipped Galvanized at 12" (304.8 mm) O.C. max
Warranty	20-Year (60 mil) or 30-Year (80 mil). material: ULTRAPLY TPO SA, Hot Dipped Galvanized Roof Nails, Stainless Steel Fasteners
Mounting	Self Adhered
Dimensions	Drain Bar Height: 2" (50.8 mm) min. above roof surface (ballasted); Max space between sections: 1/4" (6.35 mm)
Compliance	SMACNA Recommendations.
