DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPO-SA-RE-06 - ROOF EDGE GUTTER WITH ULTRAPLY TPO COATED MET

Elevate Roof Edge Gutter (Roofing). Model TPO-SA-RE-06. Requires 10" (254 mm) Ultraply TPO membrane cover with min 2" flashing extension; Uses 1-1/4" (31.75 mm) hot dipped galvanized roof nails; Nail spacing max 4" (101.6 mm) O.C. for membrane, max 6" (152.4 mm) O.C. for cleat; Continuous cleat required for 30-year warranty systems. material: Ultraply TPO SA, 1-1/4" Hot Dipped Galvanized Metal, 22 Gauge Minimum Cleat

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPO-SA-RE-06---ROOF-EDGE-GUTTER-WITH-ULTRAPLY-TPO-COATED-MET.pdfData sheet

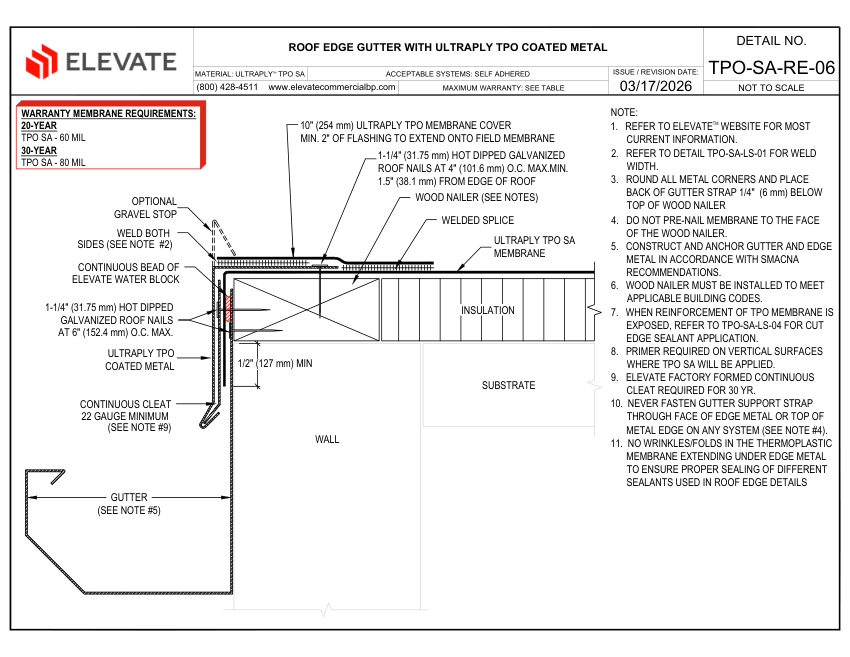

Elevate TPO-SA-RE-06 - ROOF EDGE GUTTER WITH ULTRAPLY TPO COATED MET cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPO-SA-RE-06 - ROOF EDGE GUTTER WITH ULTRAPLY TPO COATED MET
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPO-SA-RE-06 - ROOF EDGE GUTTER WITH ULTRAPLY TPO COATED MET
DescriptionElevate Roof Edge Gutter (Roofing). Model TPO-SA-RE-06. Requires 10" (254 mm) Ultraply TPO membrane cover with min 2" flashing extension; Uses 1-1/4" (31.75 mm) hot dipped galvanized roof nails; Nail spacing max 4" (101.6 mm) O.C. for membrane, max 6" (152.4 mm) O.C. for cleat; Continuous cleat required for 30-year warranty systems. material: Ultraply TPO SA, 1-1/4" Hot Dipped Galvanized Metal, 22 Gauge Minimum Cleat
FinishTPO Coated
Mounting1-1/4" Hot Dipped Galvanized Roof Nails at 4" O.C. Max (Min 1.5" from edge) and 6" O.C. Max (Cleat)
Dimensions10" (254 mm) Membrane Cover, Min 2"
