DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPO-SA-S-03A - OVERFLOW THRU WALL SCUPPER (WELDED SLEEVE) IN

Elevate Overflow Through Wall Scupper (Roofing). Model TPO-SA-S-03A. Requires continuous bead of Elevate Water Block under fasteners; Fasteners must be centered under appropriate fasteners; Exposed edges stripped with 5.5" (139.7 mm) Ultraply TPO Quickseam flashing; Single ply LVOC primer required on TPO mating surfaces. material: Welded Metal Sleeve, Ultraply TPO SA

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPO-SA-S-03A---OVERFLOW-THRU-WALL-SCUPPER-WELDED-SLEEVE-IN.pdfData sheet

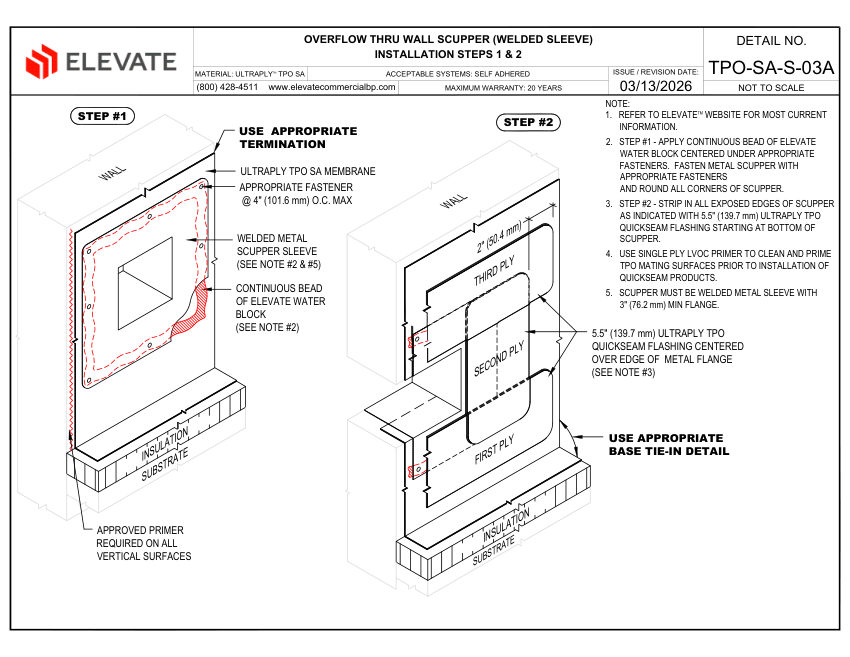

Elevate TPO-SA-S-03A - OVERFLOW THRU WALL SCUPPER (WELDED SLEEVE) IN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPO-SA-S-03A - OVERFLOW THRU WALL SCUPPER (WELDED SLEEVE) IN
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPO-SA-S-03A - OVERFLOW THRU WALL SCUPPER (WELDED SLEEVE) IN
DescriptionElevate Overflow Through Wall Scupper (Roofing). Model TPO-SA-S-03A. Requires continuous bead of Elevate Water Block under fasteners; Fasteners must be centered under appropriate fasteners; Exposed edges stripped with 5.5" (139.7 mm) Ultraply TPO Quickseam flashing; Single ply LVOC primer required on TPO mating surfaces. material: Welded Metal Sleeve, Ultraply TPO SA
Connection size3" (76.2 mm) min flange
End connectionWelded
MountingFastened @ 4" (101.6 mm) O.C. max
Dimensions5.5" (139.7 mm) Quickseam flashing
Compliance20 Year Maximum Warranty.
