ElevateTPO-SA-T-01 - TERMINATION WITH SURFACE MOUNTED COUNTER-FLASH

Elevate Termination with Surface Mounted Counter-Flashing and Termination Bar (Roofing Termination). Model TPO-SA-T-01. Maximum height is 6'0" (1.83 m); Metal counter-flashing must be 24 gauge pre-finished steel or .032" min. aluminum; Termination bar must be cut at inside corners, not bent; Fasteners spaced 12" (304.8 mm) O.C. max. material: ULTRAPLY TPO SA, 24 GAUGE PRE-FINISHED STEEL OR .032" MIN. ALUMINUM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPO-SA-T-01---TERMINATION-WITH-SURFACE-MOUNTED-COUNTER-FLASH.pdfData sheet

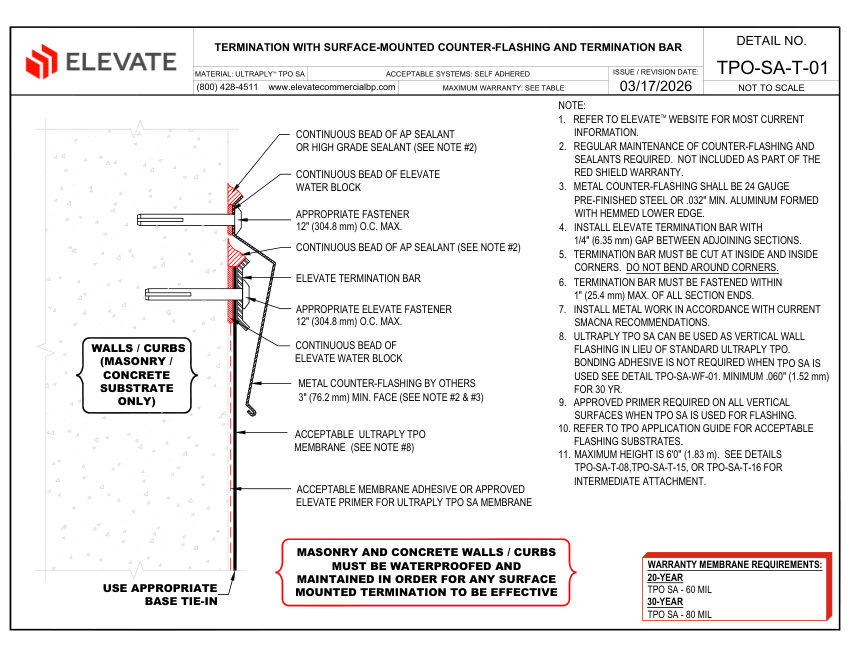

Elevate TPO-SA-T-01 - TERMINATION WITH SURFACE MOUNTED COUNTER-FLASH cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPO-SA-T-01 - TERMINATION WITH SURFACE MOUNTED COUNTER-FLASH
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPO-SA-T-01 - TERMINATION WITH SURFACE MOUNTED COUNTER-FLASH
DescriptionElevate Termination with Surface Mounted Counter-Flashing and Termination Bar (Roofing Termination). Model TPO-SA-T-01. Maximum height is 6'0" (1.83 m); Metal counter-flashing must be 24 gauge pre-finished steel or .032" min. aluminum; Termination bar must be cut at inside corners, not bent; Fasteners spaced 12" (304.8 mm) O.C. max. material: ULTRAPLY TPO SA, 24 GAUGE PRE-FINISHED STEEL OR .032" MIN. ALUMINUM
MountingSURFACE MOUNTED
DimensionsMAXIMUM HEIGHT 6'0" (1.83 m), COUNTER-FLASHING FACE 3" (76.2 mm) MIN.
ComplianceSMACNA RECOMMENDATIONS.
