DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPO-SA-T-03 - TERMINATION AT TOP OF WALL WITH ELEVATE COPING

Elevate TPO Roofing Membrane (Roofing Membrane). Model TPO-SA-T-03. Detail for termination at top of wall with Elevate Coping; Membrane thickness options: 60 mil (20-year warranty) or 80 mil (30-year warranty); Maximum vertical application height is 6 feet (1.82 m); Approved primers required for vertical surfaces: Single Ply QuickPrime, Single Ply LVOC, or Jet Bond. material: ULTRAPLY TPO SA

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPO-SA-T-03---TERMINATION-AT-TOP-OF-WALL-WITH-ELEVATE-COPING.pdfData sheet

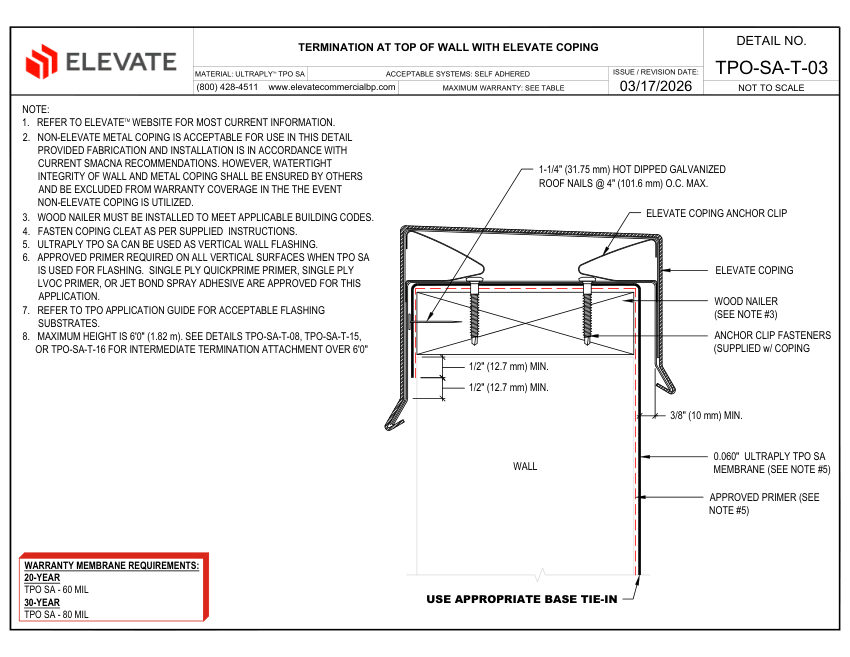

Elevate TPO-SA-T-03 - TERMINATION AT TOP OF WALL WITH ELEVATE COPING cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPO-SA-T-03 - TERMINATION AT TOP OF WALL WITH ELEVATE COPING
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPO-SA-T-03 - TERMINATION AT TOP OF WALL WITH ELEVATE COPING
DescriptionElevate TPO Roofing Membrane (Roofing Membrane). Model TPO-SA-T-03. Detail for termination at top of wall with Elevate Coping; Membrane thickness options: 60 mil (20-year warranty) or 80 mil (30-year warranty); Maximum vertical application height is 6 feet (1.82 m); Approved primers required for vertical surfaces: Single Ply QuickPrime, Single Ply LVOC, or Jet Bond. material: ULTRAPLY TPO SA
End connectionElevate Coping
MountingSelf-Adhered
Dimensions0.060" (60 mil) or 0.080" (80 mil) thickness; Max height 6'0"
ComplianceSMACNA (for non-Elevate coping).
