DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateUB-P-06 - ULTRABLEND PENETRATION WITH FIELD FABRICATED ROUND

Elevate Penetration with Field Fabricated Round PVC Penetration Pocket (Roofing Penetration). Model UB-P-06. Acceptable for all single-ply membrane systems; Requires Elevate Pourable Sealer or Fillgard M; PVC pipe must be cut minimum 2" (50 mm) high; Do not use when service line temperature exceeds 180 °F. material: TPO and EcoWhite EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFUB-P-06---ULTRABLEND-PENETRATION-WITH-FIELD-FABRICATED-ROUND.pdfData sheet

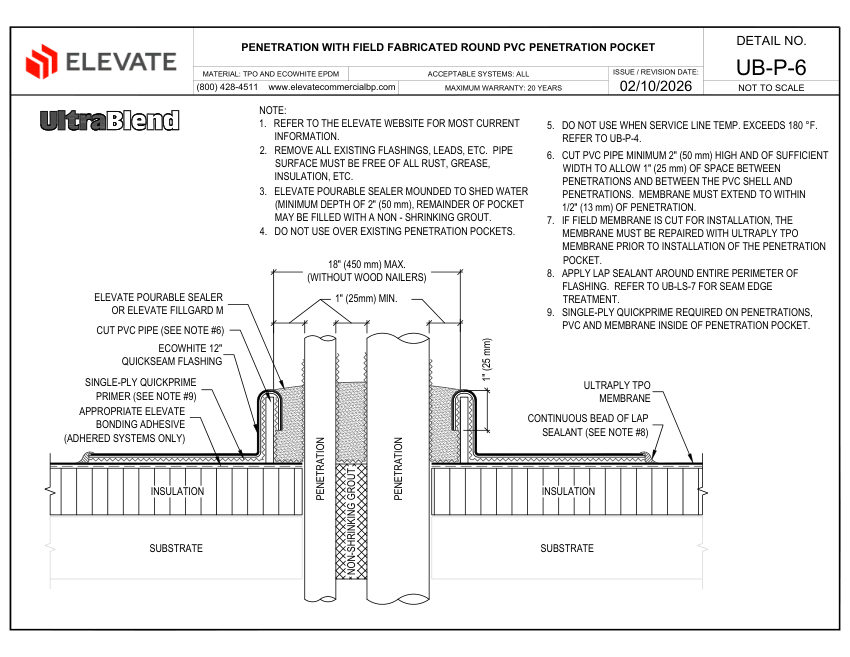

Elevate UB-P-06 - ULTRABLEND PENETRATION WITH FIELD FABRICATED ROUND cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
UB-P-06 - ULTRABLEND PENETRATION WITH FIELD FABRICATED ROUND
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberUB-P-06 - ULTRABLEND PENETRATION WITH FIELD FABRICATED ROUND
DescriptionElevate Penetration with Field Fabricated Round PVC Penetration Pocket (Roofing Penetration). Model UB-P-06. Acceptable for all single-ply membrane systems; Requires Elevate Pourable Sealer or Fillgard M; PVC pipe must be cut minimum 2" (50 mm) high; Do not use when service line temperature exceeds 180 °F. material: TPO and EcoWhite EPDM
Connection size18" (450 mm) max (without wood nailers)
End connectionField fabricated round PVC penetration pocket
MountingAdhered or mechanically fastened (implied by bonding adhesive/nailers)
Dimensions18" (450 mm) max diameter
Compliance20 Year
