ElevateUC-E-3 - CLEATED SLIDING EAVE AT DRIP EDGE

Elevate Cleated Sliding Eave at Drip Edge (Roofing System Detail). Model UC-E-3. Compatible with UC-3, UC-4, UC-6, and UC-14 systems; Maximum warranty up to 35 years; Requires continuous starter strip set in 3/16" x 7/8" butyl tape; Eave starter flashing extends down face of gutter board. material: UNA-CLAD

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFUC-E-3---CLEATED-SLIDING-EAVE-AT-DRIP-EDGE.pdfData sheet

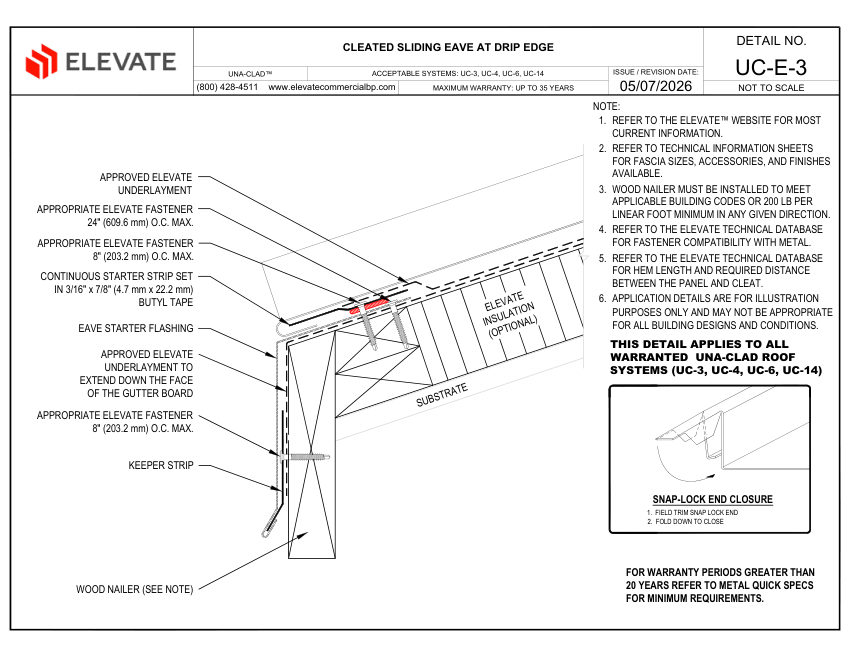

Elevate UC-E-3 - CLEATED SLIDING EAVE AT DRIP EDGE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
UC-E-3 - CLEATED SLIDING EAVE AT DRIP EDGE
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberUC-E-3 - CLEATED SLIDING EAVE AT DRIP EDGE
DescriptionElevate Cleated Sliding Eave at Drip Edge (Roofing System Detail). Model UC-E-3. Compatible with UC-3, UC-4, UC-6, and UC-14 systems; Maximum warranty up to 35 years; Requires continuous starter strip set in 3/16" x 7/8" butyl tape; Eave starter flashing extends down face of gutter board. material: UNA-CLAD
End connectionSnap-lock end closure
MountingWood nailer, 24" O.C. max (underlayment), 8" O.C. max (starter strip)
DimensionsStarter strip: 3/16" x 7/8" (4.7 mm x 22.2 mm)
ComplianceApplicable building codes, 200 lb/linear foot minimum nailer load.
