DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateXBH-RE-02 - MEMBRANE ROOF EDGE WITH ELEVATE EDGEGARD + FASCI

Elevate Membrane Roof Edge Detail (Roofing System). Model XBH-RE-02. Hybrid system for fleece backed thermoplastic and modified bitumen membranes; Includes Edgeguard + Fascia and separate flashing; Fascia includes 3 1/2" wide splice plate at joints; Standard fascia not compatible with thermoplastic membrane strips thicker than 0.060". material: 24 GA. GALV. STEEL, TPO XR, PVC XR, KEE XR, KEE XRT, MAX PVC XR, MOD-BIT

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFXBH-RE-02---MEMBRANE-ROOF-EDGE-WITH-ELEVATE-EDGEGARD-FASCI.pdfData sheet

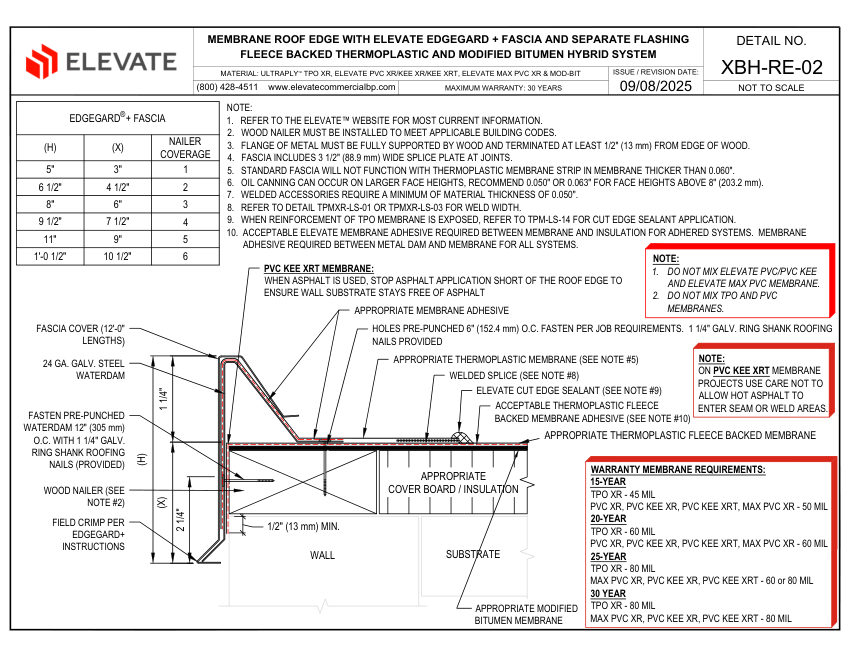

Elevate XBH-RE-02 - MEMBRANE ROOF EDGE WITH ELEVATE EDGEGARD + FASCI cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
XBH-RE-02 - MEMBRANE ROOF EDGE WITH ELEVATE EDGEGARD + FASCI
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberXBH-RE-02 - MEMBRANE ROOF EDGE WITH ELEVATE EDGEGARD + FASCI
DescriptionElevate Membrane Roof Edge Detail (Roofing System). Model XBH-RE-02. Hybrid system for fleece backed thermoplastic and modified bitumen membranes; Includes Edgeguard + Fascia and separate flashing; Fascia includes 3 1/2" wide splice plate at joints; Standard fascia not compatible with thermoplastic membrane strips thicker than 0.060". material: 24 GA. GALV. STEEL, TPO XR, PVC XR, KEE XR, KEE XRT, MAX PVC XR, MOD-BIT
End connectionWelded Splice, Adhesive, Nails
FinishGalvanized
MountingWood Nailer, Pre-punched Waterdam
DimensionsFascia Cover 12'-0" Lengths, Waterdam 12" O.C. Fastenin
