DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

Elkay3C12X16-2-16X

Elkay Three Compartment Sink (Commercial Sinks). Model 3C12X16-2-16X. 16 Gauge Stainless Steel construction

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF3C12X16-2-16X.pdfData sheet

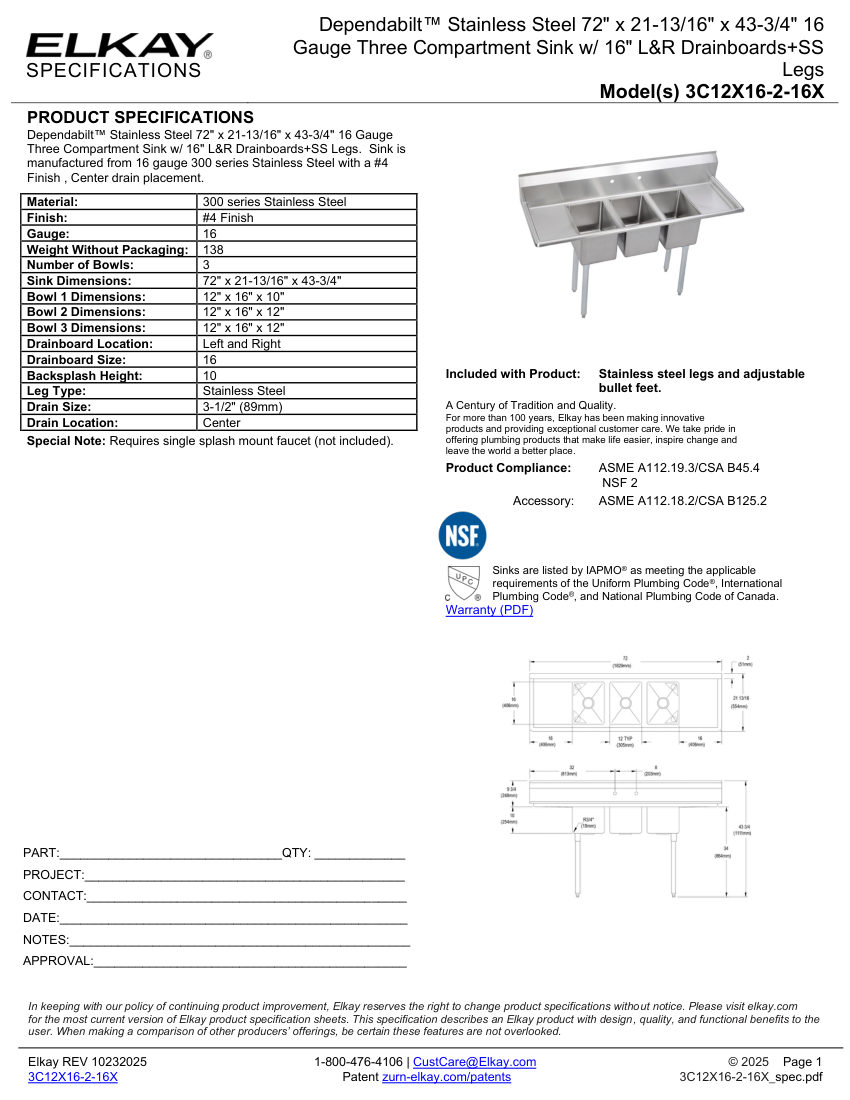

Elkay 3C12X16-2-16X cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
3C12X16-2-16X
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number3C12X16-2-16X
DescriptionElkay Three Compartment Sink (Commercial Sinks). Model 3C12X16-2-16X. 16 Gauge Stainless Steel construction
Three bowls12" x 16" x 10", 12" x 16" x 12", 12" x 16" x 12"; Includes 16" Left and Right Drainboards; Center drain placement. material: 300 series Stainless Steel
Connection size3-1/2" (89mm)
Finish#4 Finish
MountingStainless Steel Legs with adjustable bullet feet
Dimensions72" x 21-13/16" x 43-3/4"
ComplianceASME A112.19.3/CSA B45.4, NSF 2, IAPMO UPC/IPC/NPC.
