DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayElkay SS 16CHSP1716SACTMC

Elkay Wall Hung Handwash Sink Kit (Handwash Sink). Model CHSP1716SACTMC. 20 gauge 304 Stainless Steel construction; Single bowl with center drain placement; Includes LKB722C sensor faucet and LK723 thermostatic mixing valve

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCHSP1716SACTMC.pdfData sheet

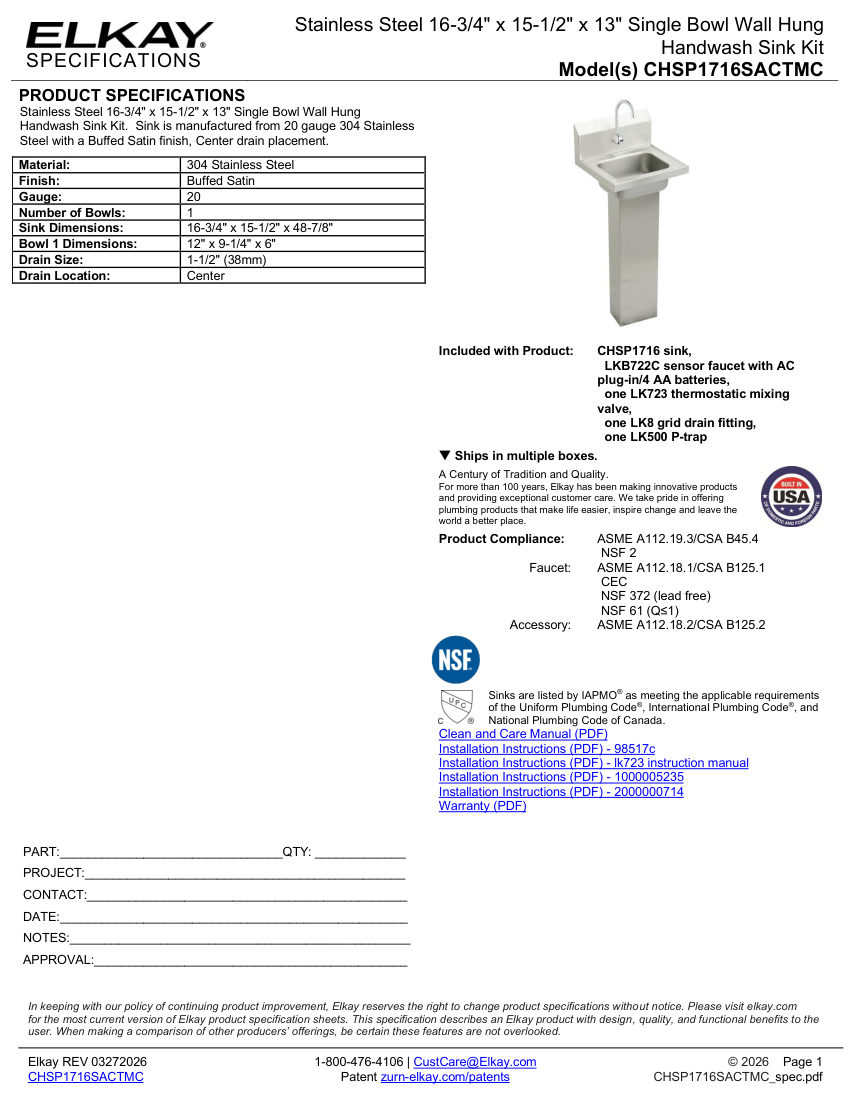

Elkay CHSP1716SACTMC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
CHSP1716SACTMC
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCHSP1716SACTMC
DescriptionElkay Wall Hung Handwash Sink Kit (Handwash Sink). Model CHSP1716SACTMC. 20 gauge 304 Stainless Steel construction; Single bowl with center drain placement; Includes LKB722C sensor faucet and LK723 thermostatic mixing valve
Bowl dimensions12" x 9-1/4" x 6". material: 304 Stainless Steel
Connection size1-1/2" (38mm)
FinishBuffed Satin
MountingWall Hung
Dimensions16-3/4" x 15-1/2" x 13"
ComplianceASME A112.19.3/CSA B45.4, NSF 2, ASME A112.18.1/CSA B125.1, CEC, NSF 372, NSF 61.
