DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayElkay Lustertone SS 37.2 x 17 x 4.5 Double DropDRKAD371745RC

Elkay Double Bowl Drop-in Classroom ADA Sink Kit (Elkay Lustertone). Model DRKAD371745RC. 18 gauge 304 Stainless Steel construction; Double bowl configuration with center drain placement; Includes LKD2439C faucet, LK1141A bubbler, LK35 strainer, and LK8 drain fitting; Minimum cabinet size required is 42". material: 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDRKAD371745RC.pdfData sheet

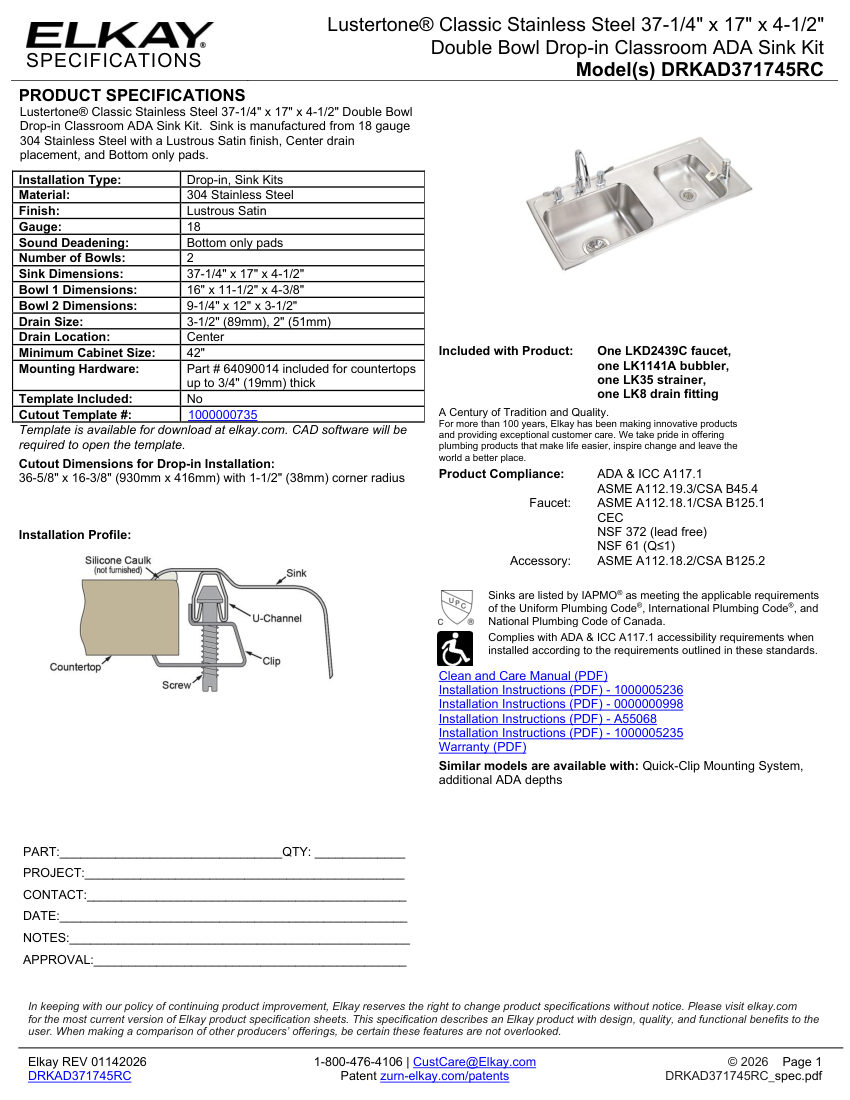

Elkay DRKAD371745RC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
DRKAD371745RC
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDRKAD371745RC
DescriptionElkay Double Bowl Drop-in Classroom ADA Sink Kit (Elkay Lustertone). Model DRKAD371745RC. 18 gauge 304 Stainless Steel construction; Double bowl configuration with center drain placement; Includes LKD2439C faucet, LK1141A bubbler, LK35 strainer, and LK8 drain fitting; Minimum cabinet size required is 42". material: 304 Stainless Steel
Connection size3-1/2" (89mm), 2" (51mm)
FinishLustrous Satin
MountingDrop-in
Dimensions37-1/4" x 17" x 4-1/2"
ComplianceADA, ICC A117.1, ASME A112.19.3/CSA B45.4, NSF 372, NSF 61.
