DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayElkay Lustertone SS 37.2x17x6.5 Dbl DropDRKAD371765RFFC

Elkay Double Bowl Drop-in Classroom ADA Sink Kit (Elkay Lustertone). Model DRKAD371765RFFC. 18 gauge 304 Stainless Steel construction; Includes LKD2439C faucet and EF3000VRBMC filtration kit; Center drain placement with bottom only sound deadening pads

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDRKAD371765RFFC.pdfData sheet

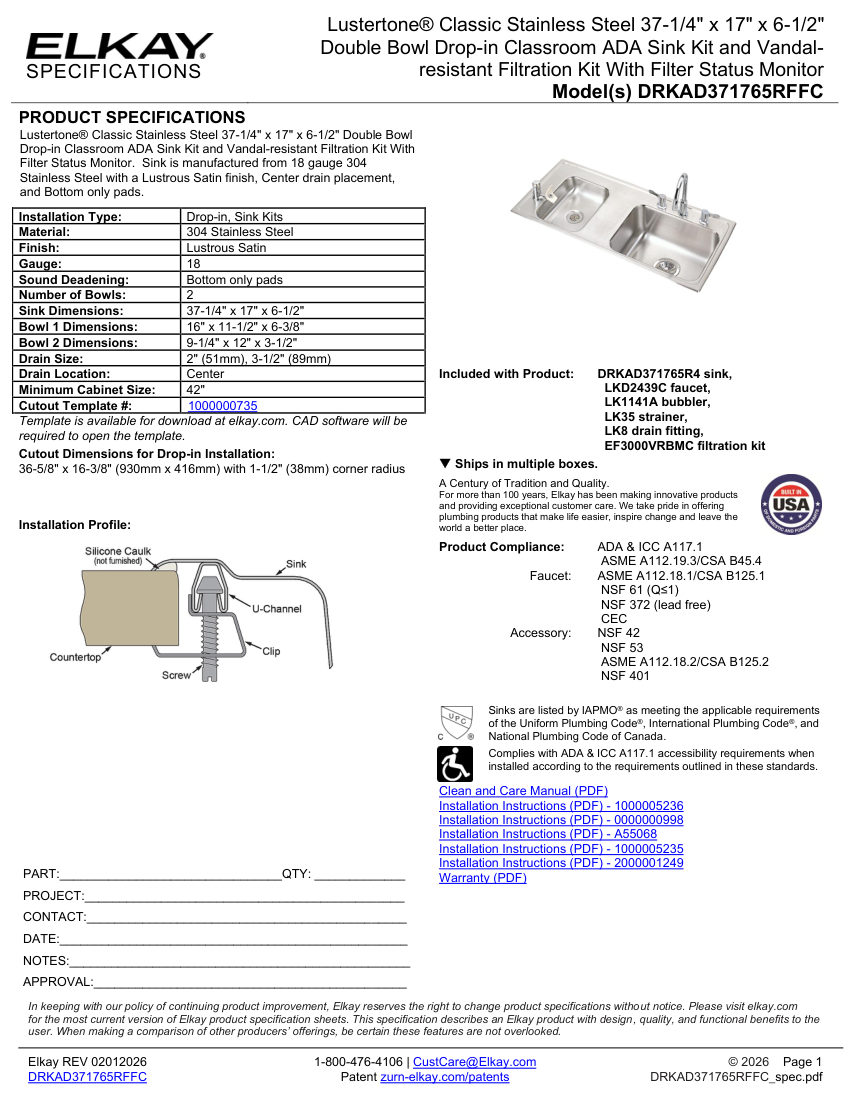

Elkay DRKAD371765RFFC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
DRKAD371765RFFC
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDRKAD371765RFFC
DescriptionElkay Double Bowl Drop-in Classroom ADA Sink Kit (Elkay Lustertone). Model DRKAD371765RFFC. 18 gauge 304 Stainless Steel construction; Includes LKD2439C faucet and EF3000VRBMC filtration kit; Center drain placement with bottom only sound deadening pads
Cutout dimensions36-5/8" x 16-3/8" with 1-1/2" corner radius. material: 304 Stainless Steel
Connection size2" (51mm), 3-1/2" (89mm)
FinishLustrous Satin
MountingDrop-in
Dimensions37-1/4" x 17" x 6-1/2"
ComplianceADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF 61, NSF 372.
