DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayElkay Lustertone SS 34x17x7.6 Dbl DropDRKR23417RFFC

Elkay Double Bowl Drop-in Sink Kit (Classroom Sink). Model DRKR23417RFFC. 2 bowls with center drain placement; Includes faucet, bubbler, strainer, drain fitting, and VR filtration kit with monitor; Minimum cabinet size 42"; Cutout dimensions 19-3/8" x 16-3/8" with 1-1/2" corner radius. material: 18 gauge 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFDRKR23417RFFC.pdfData sheet

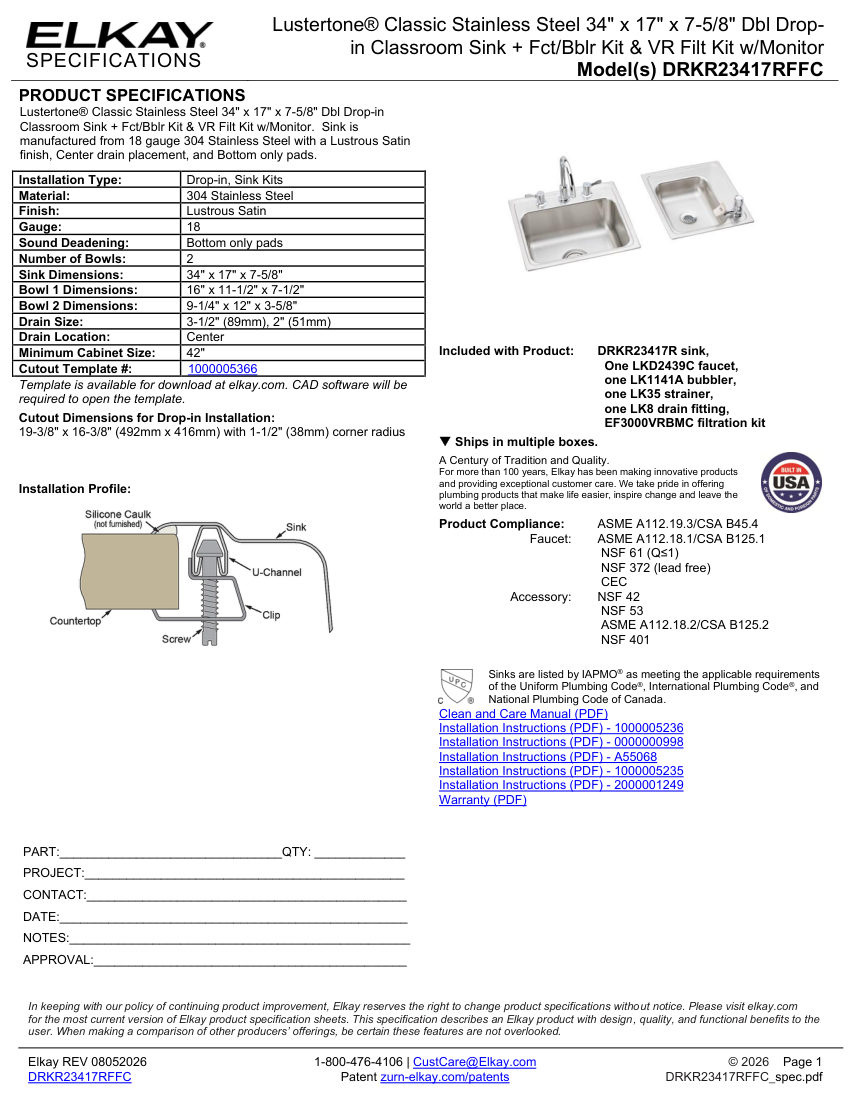

Elkay DRKR23417RFFC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
DRKR23417RFFC
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberDRKR23417RFFC
DescriptionElkay Double Bowl Drop-in Sink Kit (Classroom Sink). Model DRKR23417RFFC. 2 bowls with center drain placement; Includes faucet, bubbler, strainer, drain fitting, and VR filtration kit with monitor; Minimum cabinet size 42"; Cutout dimensions 19-3/8" x 16-3/8" with 1-1/2" corner radius. material: 18 gauge 304 Stainless Steel
Connection size3-1/2" (89mm), 2" (51mm)
FinishLustrous Satin
MountingDrop-in
Dimensions34" x 17" x 7-5/8"
ComplianceASME A112.19.3/CSA B45.4, NSF 61, NSF 372, NSF 42, NSF 53, NSF 401.
