DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayEFA8L1110P

Elkay Floor Mount Water Cooler (Drinking Water Dispenser). Model EFA8L1110P. Chilling capacity of 8.0 GPH at 50°F; Includes foot pedal activation and glass filler; Flexi-Guard Safety Bubbler with mechanical top button; Refrigerant R-134a with hermetically-sealed compressor. flowRate: 8.0 GPH

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEFA8L1110P.pdfData sheet

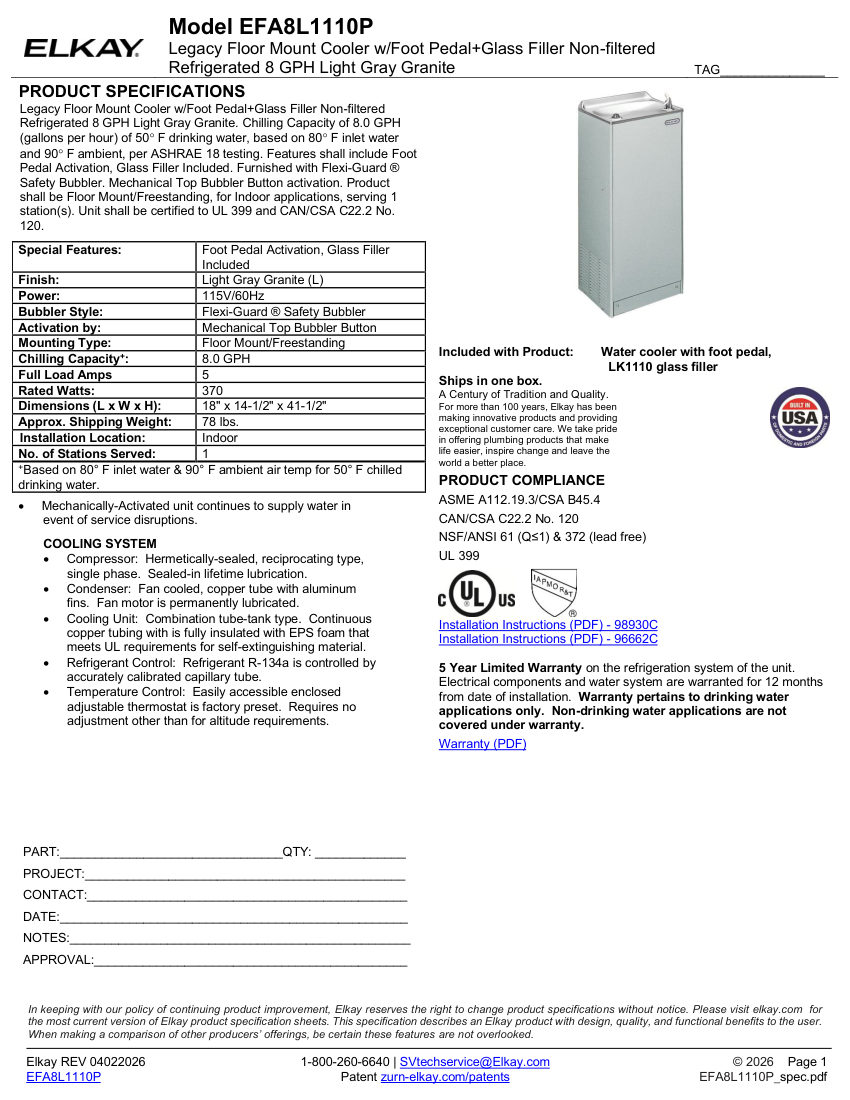

Elkay EFA8L1110P cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EFA8L1110P
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEFA8L1110P
DescriptionElkay Floor Mount Water Cooler (Drinking Water Dispenser). Model EFA8L1110P. Chilling capacity of 8.0 GPH at 50°F; Includes foot pedal activation and glass filler; Flexi-Guard Safety Bubbler with mechanical top button; Refrigerant R-134a with hermetically-sealed compressor. flowRate: 8.0 GPH
FinishLight Gray Granite
MountingFloor Mount/Freestanding
Dimensions18" x 14-1/2" x 41-1/2"
ComplianceUL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 61 & 372, ASME A112.19.3/CSA B45.4
Voltage115V/60Hz.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
