DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayEFPF5MVRBCEFPF5MVRBC

Elkay Sediment Pre-filter Filtration Kit (Water Filtration). Model EFPF5MVRBC. 5 micron sediment filtration; Vandal-resistant 20-gauge powder-coated metal box; Flow rate of 1.5 GPM (5.6 L/m); Operating temperature range 40-100°F (4-38°C). material: 20-gauge powder-coated metal (box)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEFPF5MVRBC.pdfData sheet

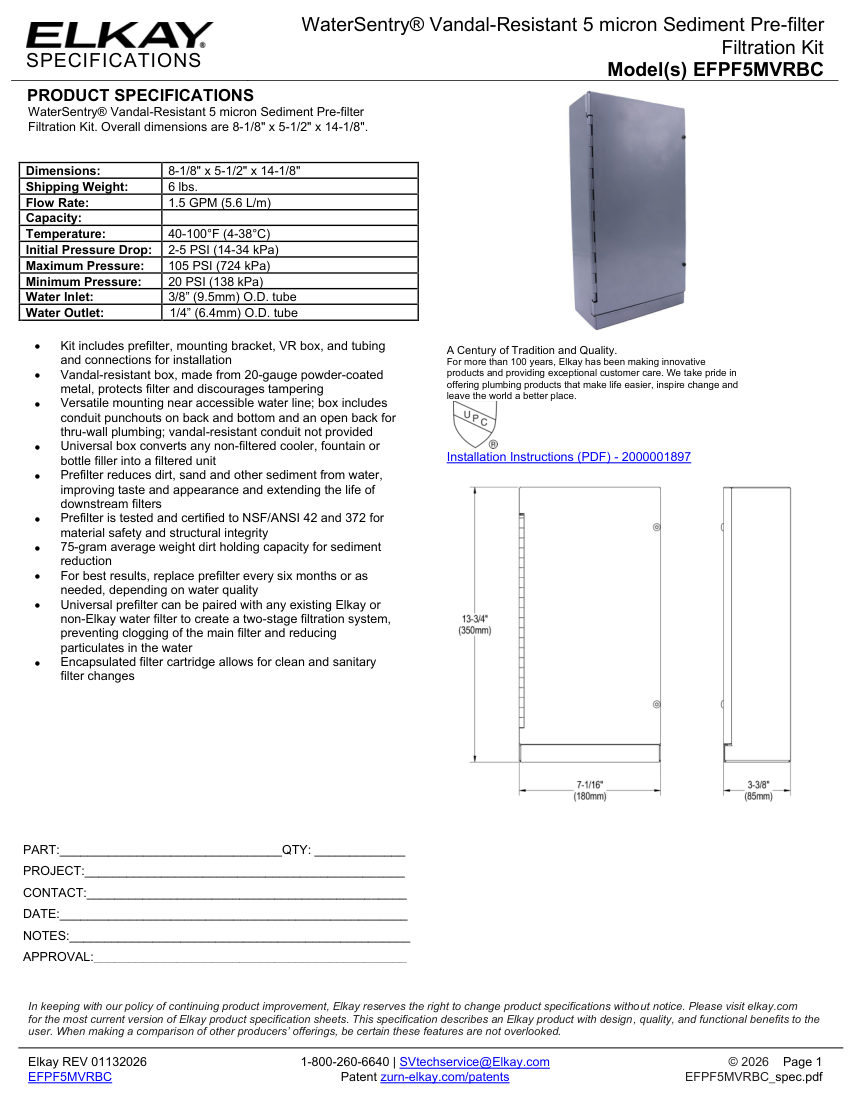

Elkay EFPF5MVRBC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EFPF5MVRBC
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEFPF5MVRBC
DescriptionElkay Sediment Pre-filter Filtration Kit (Water Filtration). Model EFPF5MVRBC. 5 micron sediment filtration; Vandal-resistant 20-gauge powder-coated metal box; Flow rate of 1.5 GPM (5.6 L/m); Operating temperature range 40-100°F (4-38°C). material: 20-gauge powder-coated metal (box)
Connection size3/8" (9.5mm) O.D. tube inlet, 1/4" (6.4mm) O.D. tube outlet
End connectionTube
Pressure RatingMax 105 PSI (724 kPa), Min 20 PSI (138 kPa)
Flow Rate1.5 GPM (5.6 L/m)
FinishPowder-coated.
