DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayElkay Quartz Classic 15ELG1616MB0C

Elkay Bar Sink Kit (Bar Sink). Model ELG1616C. Single bowl with rear center drain placement; Molded with up to 80% natural quartz and high performance acrylic resins; Non-porous surface providing heat, scratch, fade, and stain resistance; Includes bottom grid, strainer, and cleaning kit. material: Quartz

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFELG1616MB0C.pdfData sheet

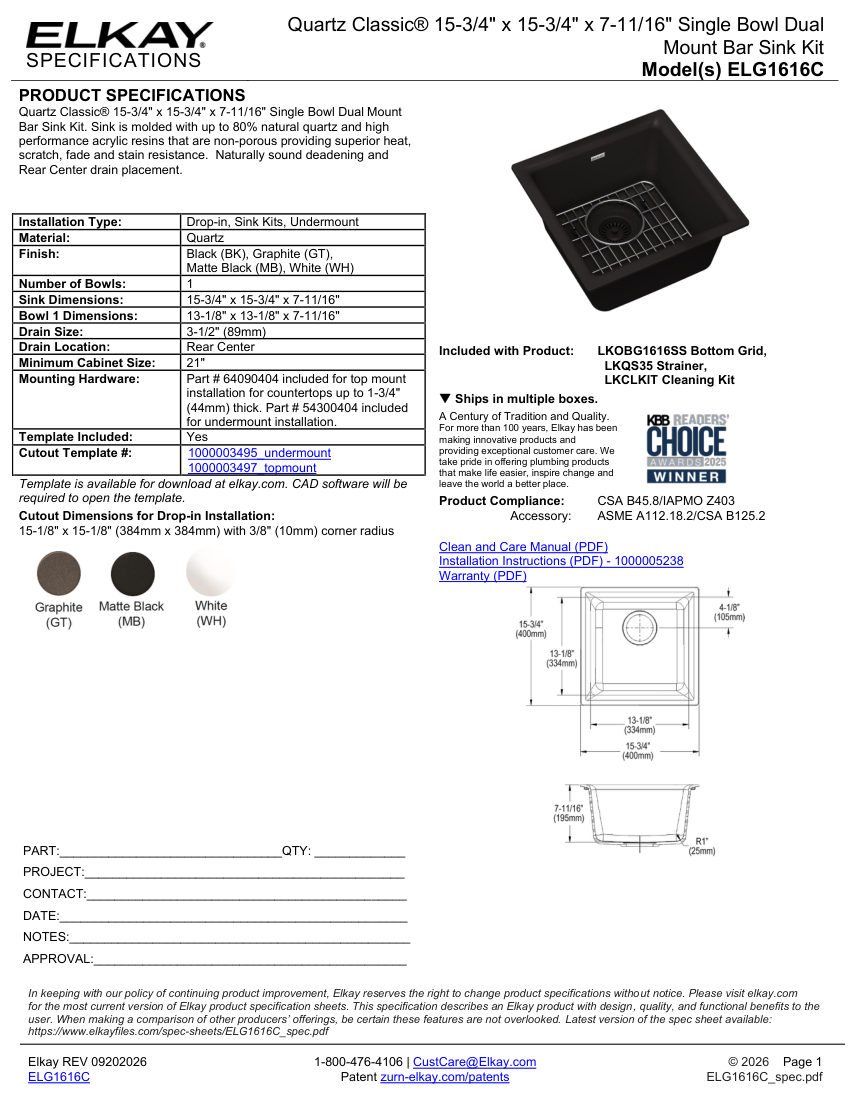

Elkay ELG1616MB0C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
ELG1616MB0C
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberELG1616MB0C
DescriptionElkay Bar Sink Kit (Bar Sink). Model ELG1616C. Single bowl with rear center drain placement; Molded with up to 80% natural quartz and high performance acrylic resins; Non-porous surface providing heat, scratch, fade, and stain resistance; Includes bottom grid, strainer, and cleaning kit. material: Quartz
Connection size3-1/2" (89mm)
FinishBlack, Graphite, Matte Black, White
MountingDrop-in, Undermount
Dimensions15-3/4" x 15-3/4" x 7-11/16"
ComplianceCSA B45.8/IAPMO Z403, ASME A112.18.2/CSA B125.2.
