DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayELUHAD312055RPD

Elkay Double Bowl Undermount ADA Sink (Commercial Sinks). Model ELUHAD312055RPD. Double bowl configuration with rear center drain placement; Includes two LKPD1 Perfect Drains and strainers

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFELUHAD312055RPD.pdfData sheet

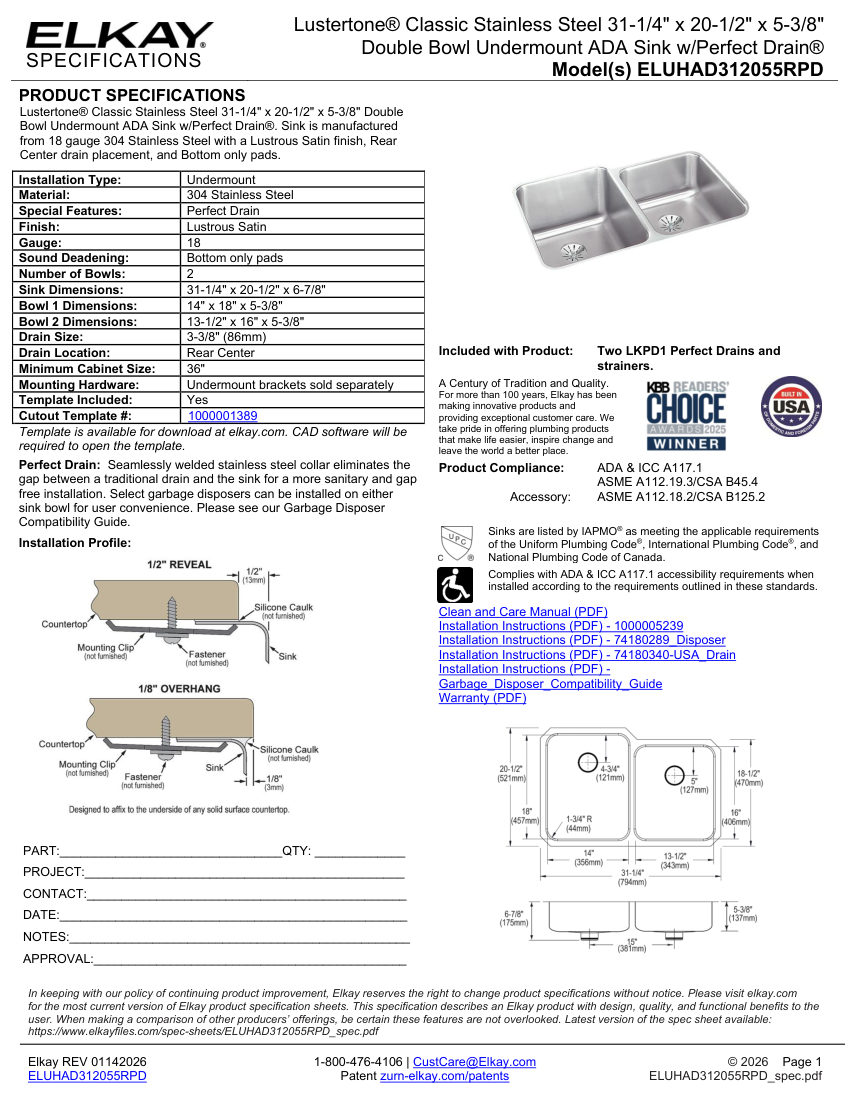

Elkay ELUHAD312055RPD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
ELUHAD312055RPD
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberELUHAD312055RPD
DescriptionElkay Double Bowl Undermount ADA Sink (Commercial Sinks). Model ELUHAD312055RPD. Double bowl configuration with rear center drain placement; Includes two LKPD1 Perfect Drains and strainers
Bowl 1 dimensions14" x 18" x 5-3/8"
Bowl 2 dimensions13-1/2" x 16" x 5-3/8". material: 18 gauge 304 Stainless Steel
Connection size3-3/8" (86mm)
FinishLustrous Satin
MountingUndermount
Dimensions31-1/4" x 20-1/2" x 6-7/8"
ComplianceADA & ICC A117.1, ASME A112.19.3/CSA B45.4, IAPMO listed.
