DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayWall Mount Mechanical Activation ADA Cooler Light Gray GraniteEMABF8L

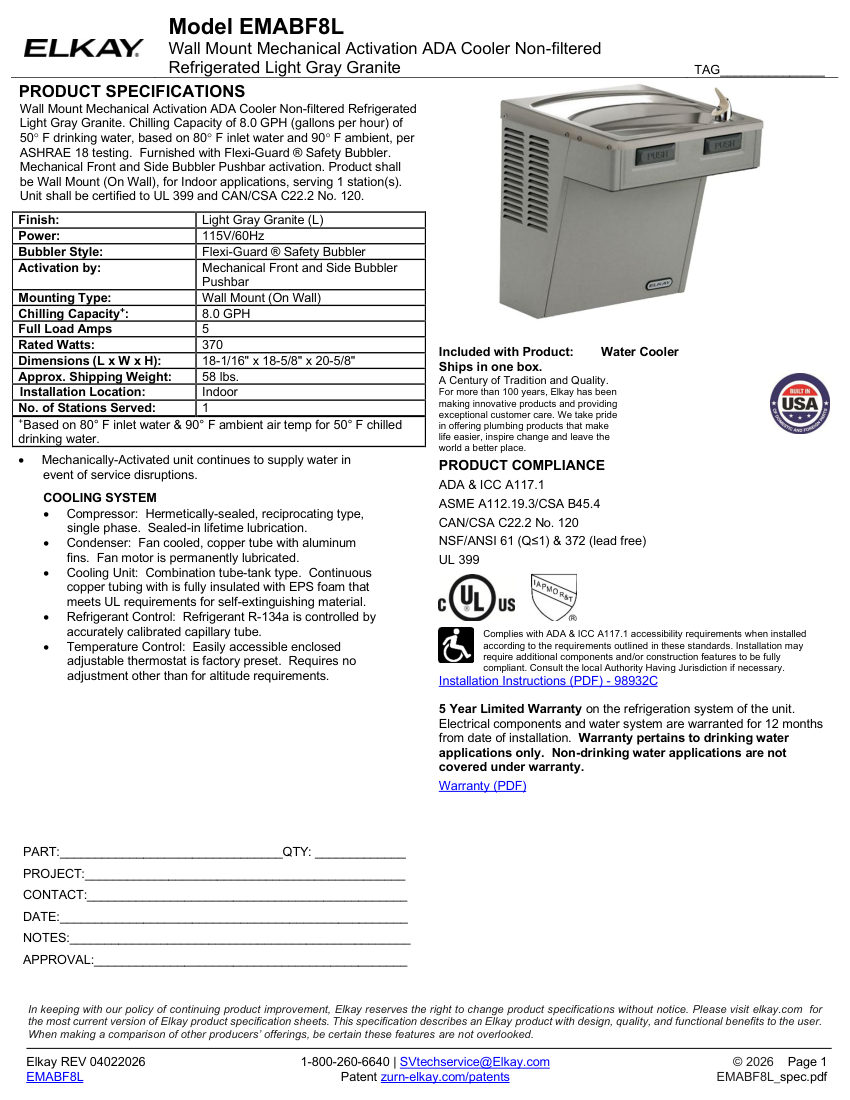

Name: Elkay Wall Mount Mechanical Activation ADA Cooler Light Gray Granite (EMABF8L)
Brand: Elkay
SKU: EMABF8L

Elkay Wall Mount Mechanical Activation ADA Cooler (Water Cooler). Model EMABF8L. Chilling Capacity: 8.0 GPH of 50°F water

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	EMABF8L
Description	Elkay Wall Mount Mechanical Activation ADA Cooler (Water Cooler). Model EMABF8L. Chilling Capacity: 8.0 GPH of 50°F water
Activation	Mechanical Front and Side Bubbler Pushbar
Bubbler Style	Flexi-Guard Safety Bubbler
Rated Watts	370. flowRate: 8.0 GPH
Finish	Light Gray Granite
Mounting	Wall Mount (On Wall)
Dimensions	18-1/16" x 18-5/8" x 20-5/8"
Compliance	ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, CAN/CSA C22.2 No. 120, NSF/ANSI 61 (Q≤1) & 372 (lead free), UL 399
Voltage	115V/60Hz.
