DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

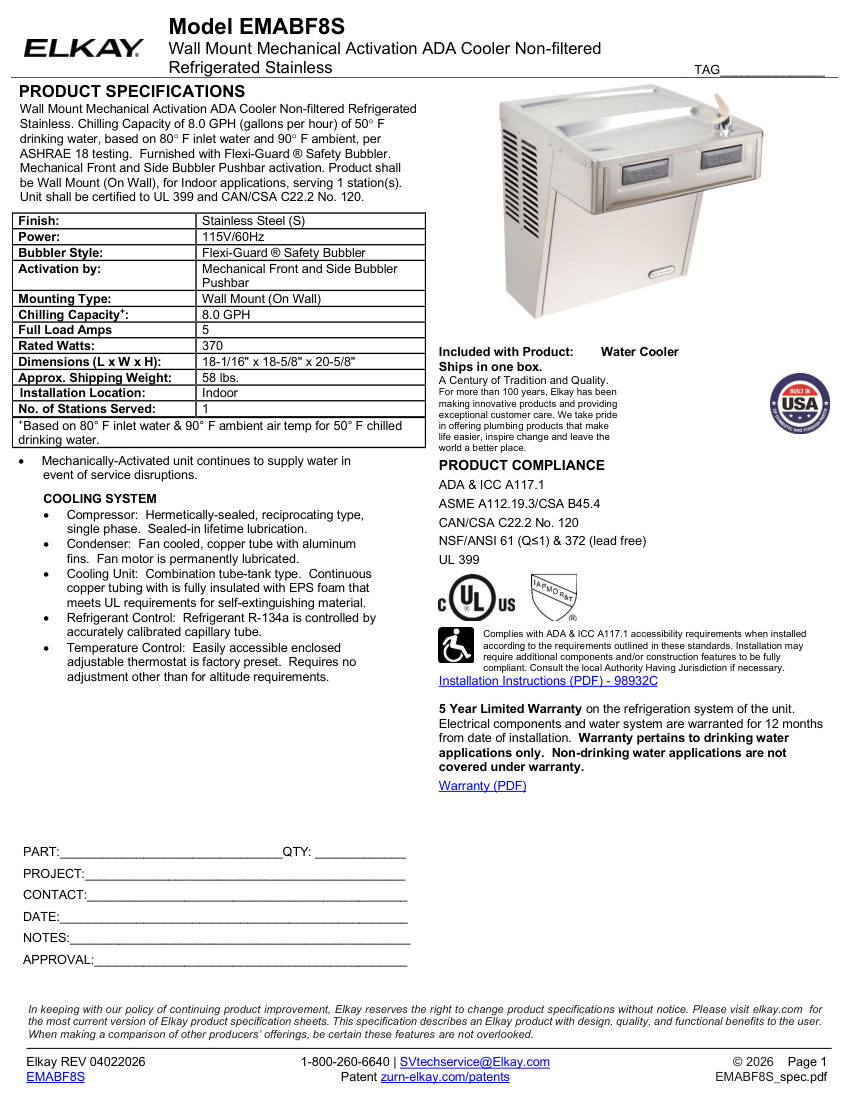

ElkayIndoor Wall Mount Mechanical Activation ADA Cooler 8 GPHEMABF8S

Name: Elkay Indoor Wall Mount Mechanical Activation ADA Cooler 8 GPH (EMABF8S)
Brand: Elkay
SKU: EMABF8S

Elkay Wall Mount Water Cooler (Drinking Water Dispenser). Model EMABF8S. Chilling Capacity: 8.0 GPH of 50°F water

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	EMABF8S
Description	Elkay Wall Mount Water Cooler (Drinking Water Dispenser). Model EMABF8S. Chilling Capacity: 8.0 GPH of 50°F water
Activation	Mechanical Front and Side Bubbler Pushbar
Bubbler Style	Flexi-Guard Safety Bubbler
Refrigerant	R-134a. material: Stainless Steel
Flow Rate	8.0 GPH
Finish	Stainless Steel
Mounting	Wall Mount (On Wall)
Dimensions	18-1/16" x 18-5/8" x 20-5/8"
Compliance	ADA, ICC A117.1, ASME A112.19.3, CSA B45.4, CAN/CSA C22.2 No. 120, NSF/ANSI 61, NSF/ANSI 372, UL 399.
