DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

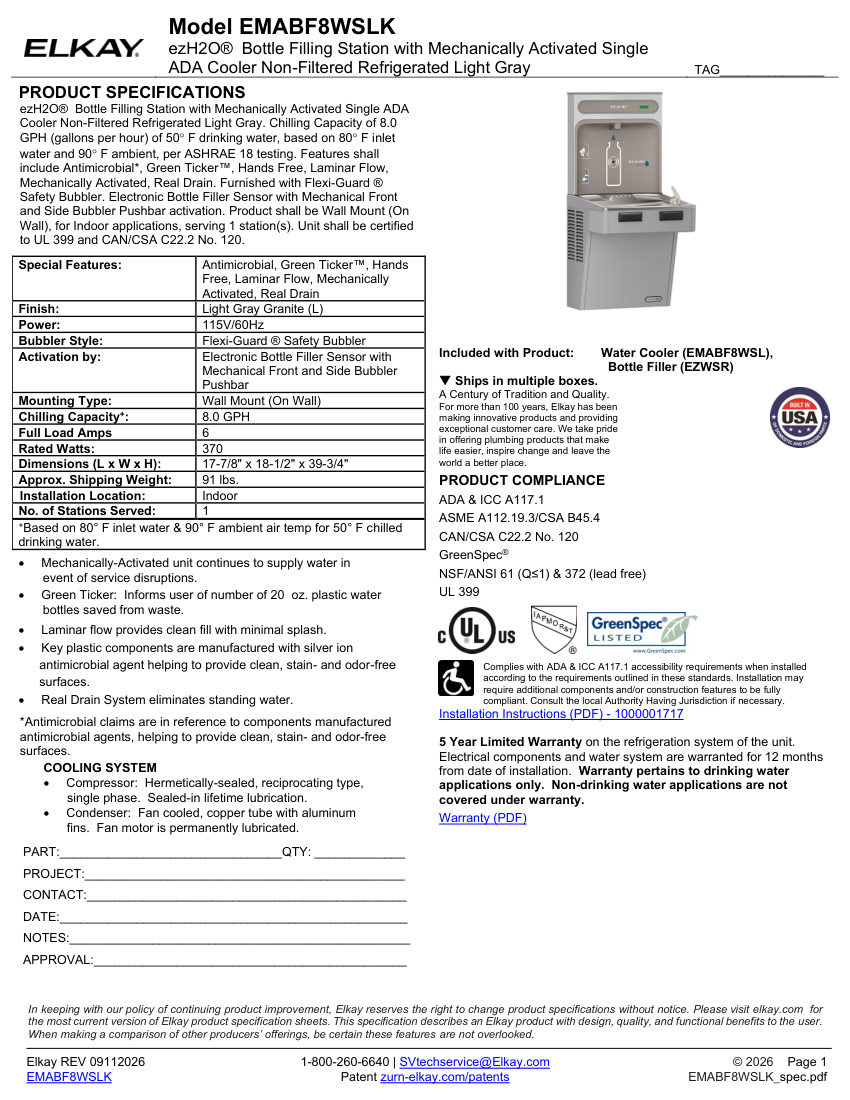

ElkayMechanically Activated & ADA Cooler: Elkay ezH2O® Bottle FillerEMABF8WSLK

Name: Elkay Mechanically Activated & ADA Cooler: Elkay ezH2O® Bottle Filler (EMABF8WSLK)
Brand: Elkay
SKU: EMABF8WSLK

Elkay Bottle Filling Station with ADA Cooler (Drinking Water Dispenser). Model EMABF8WSLK. Chilling Capacity: 8.0 GPH of 50°F water

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	EMABF8WSLK
Description	Elkay Bottle Filling Station with ADA Cooler (Drinking Water Dispenser). Model EMABF8WSLK. Chilling Capacity: 8.0 GPH of 50°F water
Activation	Electronic Bottle Filler Sensor with Mechanical Pushbar
Bubbler Style	Flexi-Guard Safety Bubbler
Rated Watts	370. flowRate: 8.0 GPH
Finish	Light Gray Granite
Mounting	Wall Mount (On Wall)
Dimensions	17-7/8" x 18-1/2" x 39-3/4"
Compliance	UL 399, CAN/CSA C22.2 No. 120, ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 61 & 372
Voltage	115V/60Hz.
