DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

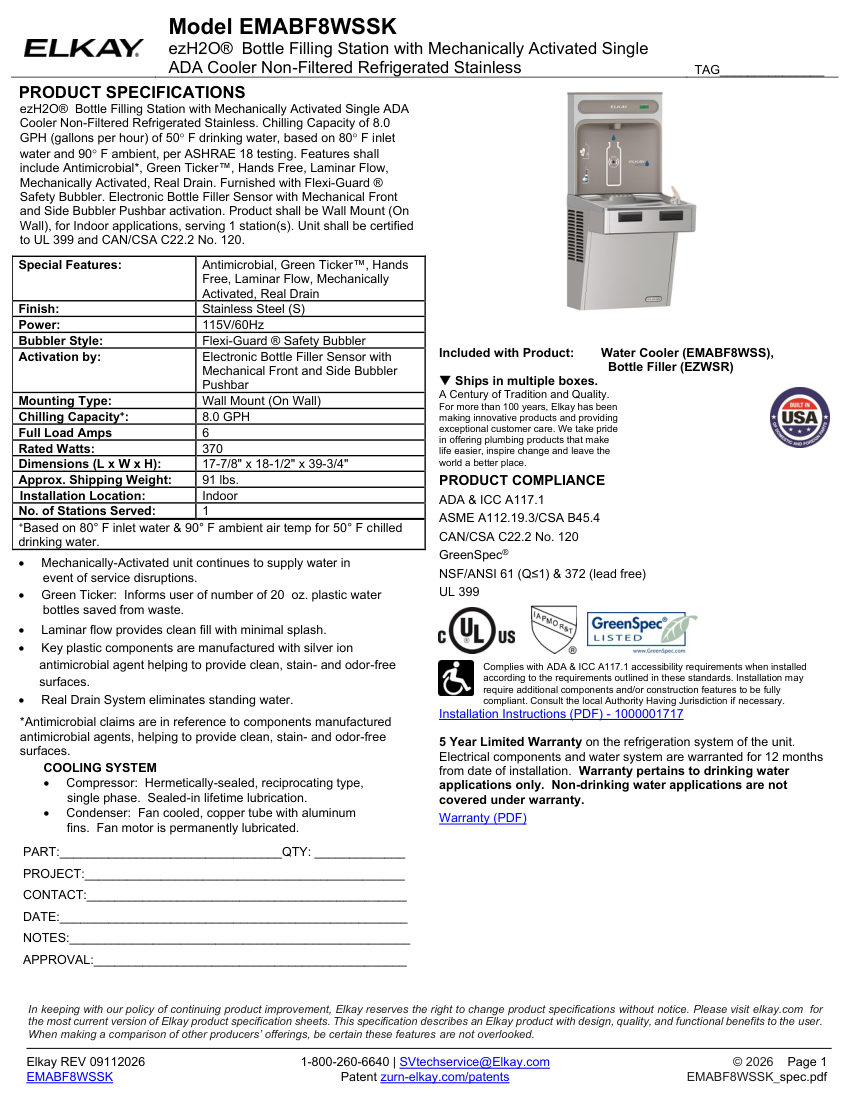

ElkayStainless Steel ezH2O® Bottle Filling Station with ADA CoolerEMABF8WSSK

Name: Elkay Stainless Steel ezH2O® Bottle Filling Station with ADA Cooler (EMABF8WSSK)
Brand: Elkay
SKU: EMABF8WSSK

Elkay Bottle Filling Station with ADA Cooler (Drinking Water). Model EMABF8WSSK. Chilling Capacity: 8.0 GPH of 50°F water

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	EMABF8WSSK
Description	Elkay Bottle Filling Station with ADA Cooler (Drinking Water). Model EMABF8WSSK. Chilling Capacity: 8.0 GPH of 50°F water
Activation	Electronic Bottle Filler Sensor with Mechanical Pushbar
Bubbler	Flexi-Guard Safety Bubbler
Rated Watts	370. material: Stainless Steel
Flow Rate	8.0 GPH
Finish	Stainless Steel
Mounting	Wall Mount (On Wall)
Dimensions	17-7/8" x 18-1/2" x 39-3/4"
Compliance	UL 399, CAN/CSA C22.2 No. 120, ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 61 & 372.
