DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayEWFPF5MEWFPF5M

Elkay Sediment Pre-filter Filtration Kit (Water Filtration). Model EWFPF5M. 5-micron sediment filtration; 75-gram average dirt holding capacity; Operating temperature 40-100°F (4-38°C); Initial pressure drop 2-5 PSI (14-34 kPa). connectionSize: 3/8" (9.5mm) O.D. tube inlet, 1/4" (6.4mm) O.D. tube outlet

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWFPF5M.pdfData sheet

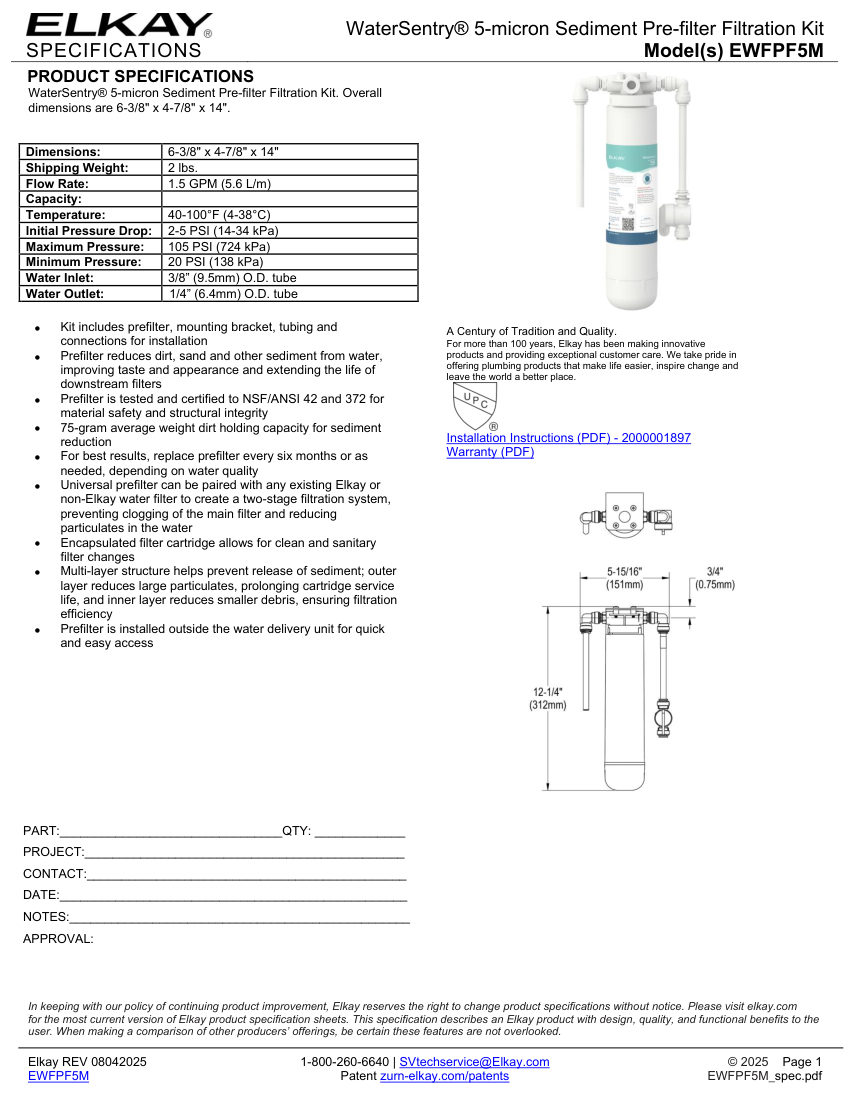

Elkay EWFPF5M cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EWFPF5M
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWFPF5M
DescriptionElkay Sediment Pre-filter Filtration Kit (Water Filtration). Model EWFPF5M. 5-micron sediment filtration; 75-gram average dirt holding capacity; Operating temperature 40-100°F (4-38°C); Initial pressure drop 2-5 PSI (14-34 kPa). connectionSize: 3/8" (9.5mm) O.D. tube inlet, 1/4" (6.4mm) O.D. tube outlet
End connectionTube
Pressure RatingMax 105 PSI (724 kPa), Min 20 PSI (138 kPa)
Flow Rate1.5 GPM (5.6 L/m)
MountingIncludes mounting bracket
Dimensions6-3/8" x 4-7/8" x 14".
