DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayEWMA6020C

Elkay Wall Hung Multiple Station Hand Wash Sink Kit (Hand Wash Sink). Model EWMA6020C. 14 gauge 304 Stainless Steel construction; Includes three LK940GN05T4H faucets and one LK18B drain; Center drain placement

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWMA6020C.pdfData sheet

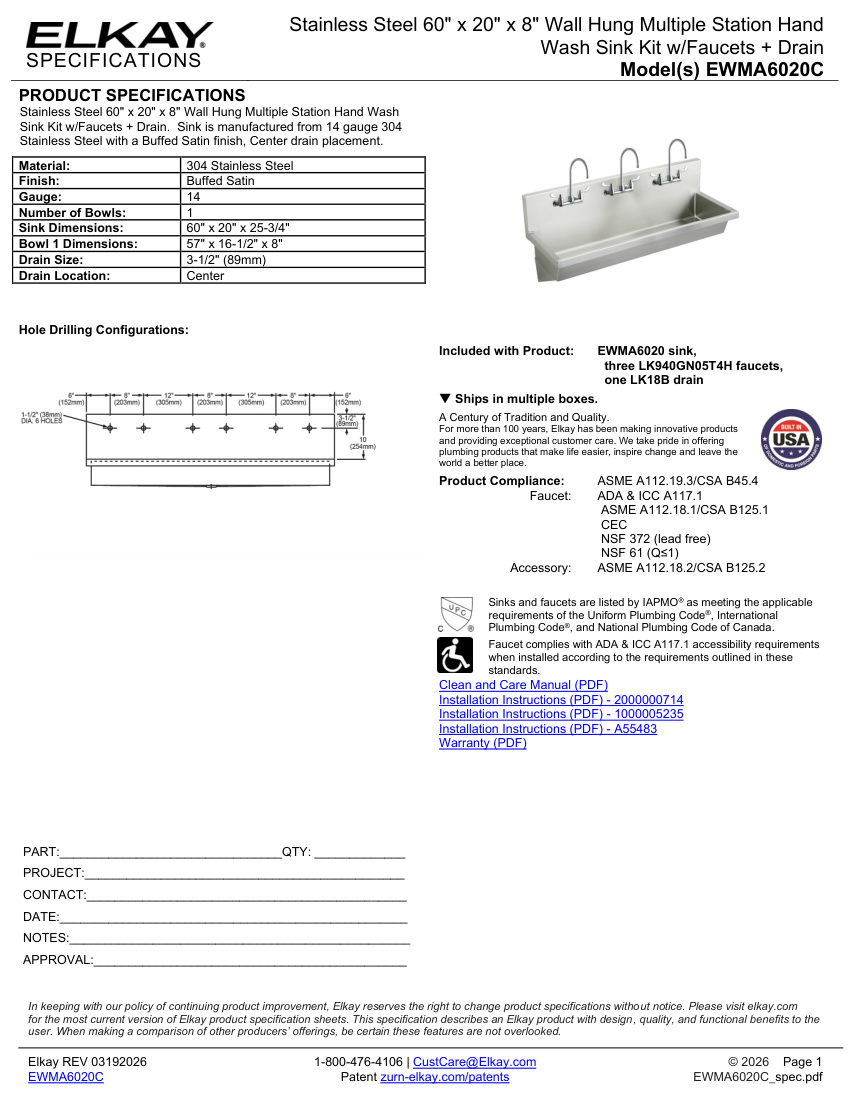

Elkay EWMA6020C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EWMA6020C
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWMA6020C
DescriptionElkay Wall Hung Multiple Station Hand Wash Sink Kit (Hand Wash Sink). Model EWMA6020C. 14 gauge 304 Stainless Steel construction; Includes three LK940GN05T4H faucets and one LK18B drain; Center drain placement
Bowl dimensions57" x 16-1/2" x 8". material: 304 Stainless Steel
Connection size3-1/2" (89mm)
FinishBuffed Satin
MountingWall Hung
Dimensions60" x 20" x 25-3/4"
ComplianceASME A112.19.3/CSA B45.4, ADA & ICC A117.1, ASME A112.18.1/CSA B125.1, CEC, NSF 372, NSF 61.
